Columbia CR30 Tractor (13A726JD897) (2017) Lawn Tractor

Model: CR30 Tractor (13A726JD897) (2017)

Back To Assemblies

Save Part Not Listed?
product name

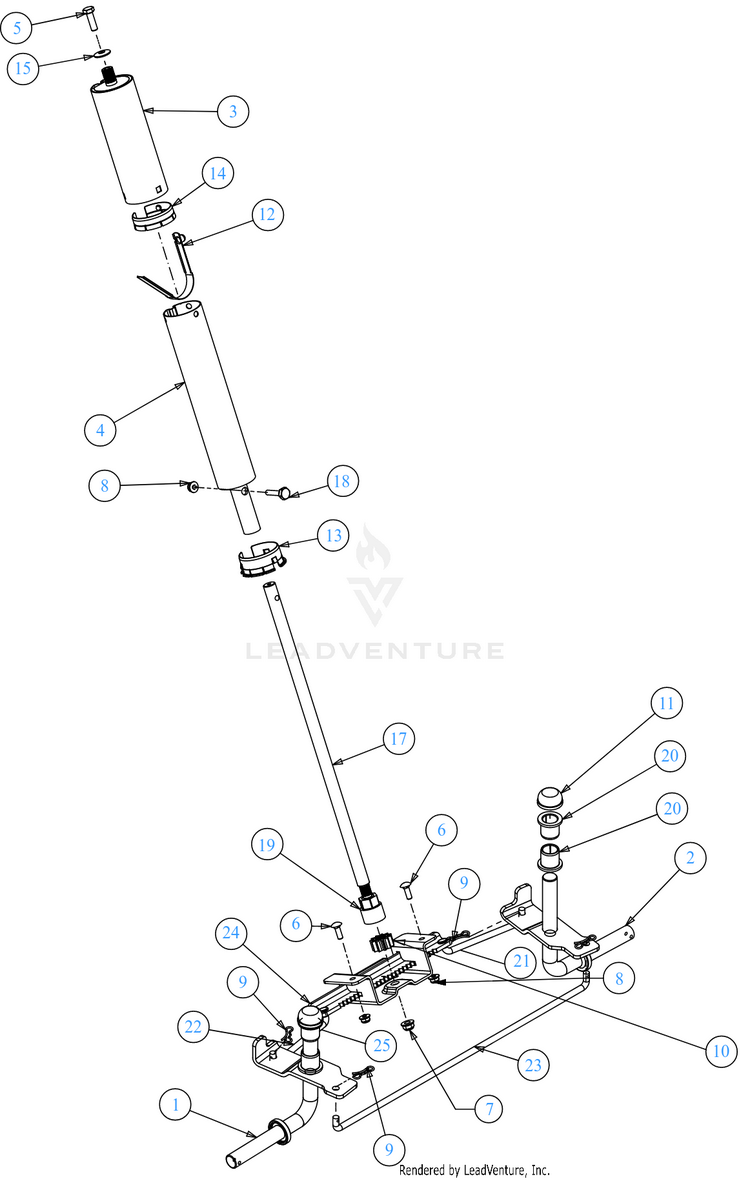

Steering

...
...
1
FRONT AXLE ASSEMBLY(RH) MTD-683-04726-0637
...
2
FRONT AXLE ASSEMBLY(LH) MTD-683-04727-0637
...
3
UPPER TUBE ASSEMBLY MTD-683-04761
...
4
LOWER TUBE ASSEMBLY MTD-683-04762
...
5
SCREW 5/16-18 x 1.00 GR5 MTD-710-0643
...
6
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
7
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
8
FLANGE LOCK NUT MTD-712-04064
...
9
COTTER PIN 3/32 DIA X .75 MTD-914-0507
...
10
STEERING PINION GEAR MTD-717-1554
...
11
CAP MTD-726-0341
...
12
SNAP BUTTON MTD-726-04127
...
13
LOWER STEERING COLLAR MTD-731-08690
...
14
UPPER STEERING COLLAR MTD-731-08691
...
15
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
17
STEERING SHAFT MTD-738-04537B
...
18
SHOULDER SCREW .375 x .148 MTD-738-05000
...
19
FLANGE BEARING MTD-741-04542A
...
20
FLANGE BEARING .760 ID MTD-741-0660A
...
21
STEERING ROD (LH) MTD-747-05514
...
22
STEERING ROD (RH) MTD-747-05585
...
23
FRONT TIE ROD MTD-747-06027
...
24
SERVICE KIT (CR12 STREERING) MTD-753-11064D
...
25
SERVICE KIT (CR12 STREERING) MTD-753-11064D
