Columbia CR30 Tractor (13A726JD897) (2017) Lawn Tractor

Model: CR30 Tractor (13A726JD897) (2017)

Back To Assemblies

Save Part Not Listed?
product name

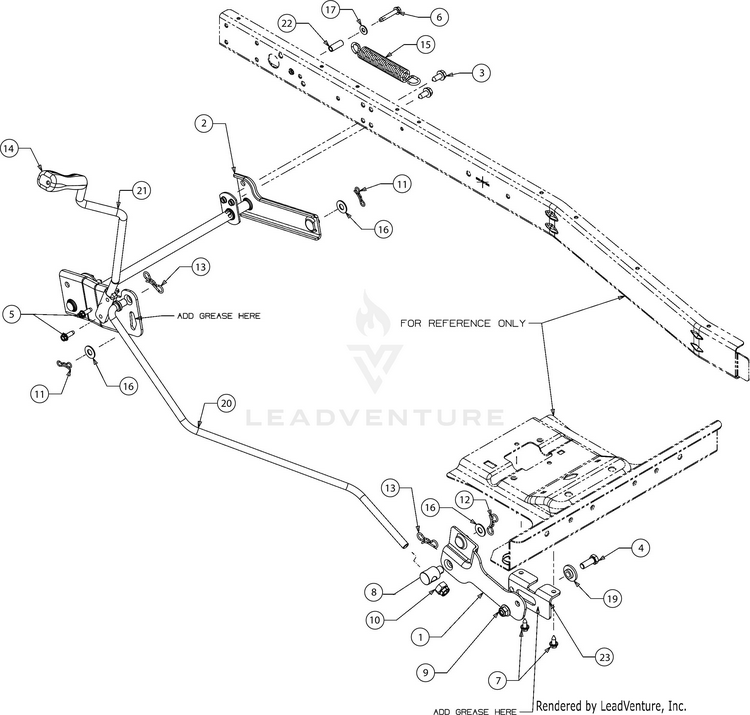

Deck Lift

...
...
1
BRACKET ASSEMBLY MTD-683-04757-0637
...
2
LIFT SHAFT ASSEMBLY MTD-683-05060-0637
...
2
PEDAL SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING*(Not Shown) MTD-783-04536B
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
5
SCREW 1/4-20 x .750 MTD-710-0642
...
6
SCREW 1/4-20 x 1.50" MTD-710-0778
...
7
SCREW 1/4-20X.625 MTD-710-1652
...
8
FERRULE MTD-711-05690C
...
9
NUT MTD-712-04065
...
10
NUT MTD-712-04243
...
11
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
12
PIN:COTTER MTD-714-04043
...
13
BOW TIE COTTER PIN MTD-714-05005
...
14
HANDLE GRIP MTD-720-0311
...
15
EXTENSION SPRING .85 x 5.91 MTD-732-04692
...
16
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
17
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
19
SHOULDER SPACER MTD-938-0347
...
20
LIFT ROD MTD-747-05511
...
21
Deck Lift Rod MTD-747-05576
...
22
SPACER MTD-750-0566A
...
23
FRONT DECK BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-07129
