Columbia CR30 Tractor (13A726JD897) (2017) Lawn Tractor

Model: CR30 Tractor (13A726JD897) (2017)

Back To Assemblies

Save Part Not Listed?
product name

Engine Accessories

...
...
1
SCREW 1/4-20 x .500 MTD-710-04483
...
2
SCREW 3/8-16 x 1 MTD-710-04683C
...
3
SCREW 3/8-16 x 2.250 MTD-710-05446
...
4
SCREW 7/16-20 x 1.50 GR5 MTD-710-0757
...
5
HEX NUT MTD-712-0691
...
6
HOSE CLAMP 1/20 MTD-726-0205
...
7
OIL DRAIN SLEEVE MTD-731-1682A
...
8
LOCK WASHER 3/8 MTD-736-0148
...
9
FLAT WASHER .445 x 1.248 x .170 MTD-736-0322
...
10
OIL:SAE 10W30 MTD-NSOIL
...
10
GENUINE FACTORY PARTS® 32 oz 10W30 oil Retail Package Part MTD-490-000-F044
...
12
THROTTLE CABLE 31" x 1.1 MTD-946-05049A
...
13
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
14
FUEL FILTER MTD-951-3013
...
14
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M002
...
15
ENGINE PULLEY (4.46" DIA/3.39" DIA) MTD-756-06043

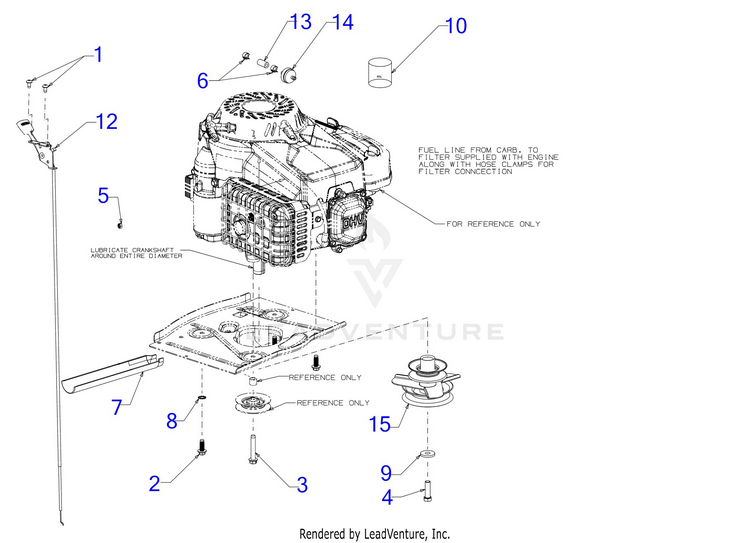

Schematic Image Zoomed
