Columbia CR30 (13A726JD897) (2020) Lawn Tractor

Model: CR30 (13A726JD897) (2020)

Back To Assemblies

Save Part Not Listed?
product name

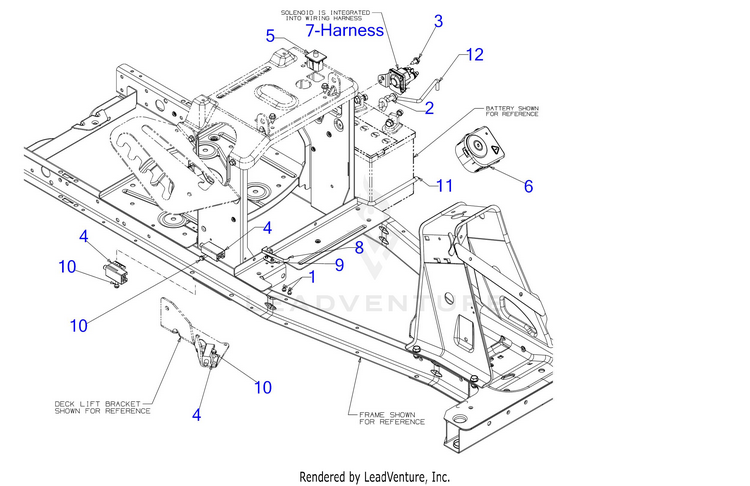

Electrical

...
...
1
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
SCREW 1/4-20X.625 MTD-710-1652
...
4
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
5
SEAT SWITCH MTD-925-05013
...
6
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
7
HARNESS (RMC SOLENOID AC/DC) MTD-925-06274B
...
8
SPRING SWITCH MTD-725-1643
...
9
INSULATOR PLATE MTD-926-0320
...
10
SHOULDER SCREW MTD-738-04237A
...
11
BATTERY TRAY ROD MTD-747-06131B
...
12
BATTERY HOLD DOWN ROD MTD-747-06148
