Columbia 21B-39M8897 CFT 24 R (2019) Tiller

Model: 21B-39M8897 CFT 24 R (2019)

Back To Assemblies

Save Part Not Listed?
product name

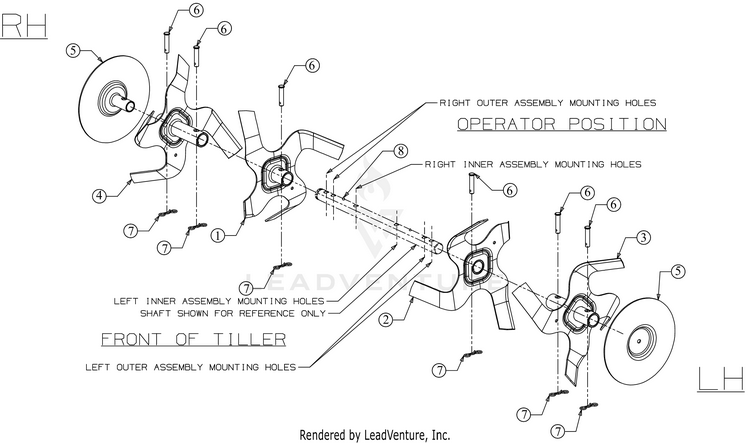

Tines

...
...
1
TINE ASSEMBLY (INNER) (RH) MTD-642-0002-0637
...
2
TINE ASSEMBLY (INNER) (LH) MTD-642-0003-0637
...
3
TINE ASSEMBLY (OUTER) (LH) MTD-642-0023-0637
...
4
TINE ASSEMBLY (OUTER) (RH) MTD-642-0024-0637
...
5
OUTER DISC PLATE (POWDER BLACK) MTD-686-0106-0637
...
6
Clevis Pin MTD-711-0415
...
7
PIN:COTTER MTD-714-04043
...
8
GREASE (Purchase Locally) MTD-NA
