Columbia 21B-39M8897 CFT 24 R (2019) Tiller

Model: 21B-39M8897 CFT 24 R (2019)

Back To Assemblies

Save Part Not Listed?
product name

Handle

...
...
1
HARNESS ASSEMBLY MTD-629-05025
...
2
HANDLE ASSEMBLY (MTD RED) MTD-649-04040-0638
...
3
REVERSE HANDLE ASSEMBLY MTD-686-0014C-0637
...
4
CLUTCH HANDLE ASSEMBLY (POWDER BLACK) MTD-686-0083-0637
...
5
BOLT 1/2-20 x .75 GR5 MTD-710-06053
...
6
SCREW 1/4-20 x 2.25 GR5 MTD-710-0641
...
7
SCREW #10-16 x .500 MTD-710-0779A
...
8
SCREW 5/16-18 x 1.00 MTD-710-1236
...
9
Acorn Lock Nut 1/4-20 MTD-712-0442
...
10
HEX NUT MTD-712-3006
...
11
HANDLE KNOB MTD-720-0195
...
12
CLUTCH GRIP MTD-720-0269
...
13
REVERSE LEVER GRIP MTD-720-0270A
...
14
GRIP MTD-720-0274
...
16
POSITIVE SWITCH- ON/OFF MTD-725-05292
...
17
SPEED NUT MTD-726-0135
...
18
CABLE TIE MTD-726-04047
...
19
CLUTCH HANDLE HOLDER MTD-931-1645B
...
20
HANDLE COVER MTD-731-2536A
...
21
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
22
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
23
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
24
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
25
HANDLE BRACE (Choose color when ordering) MTD-749-1401A

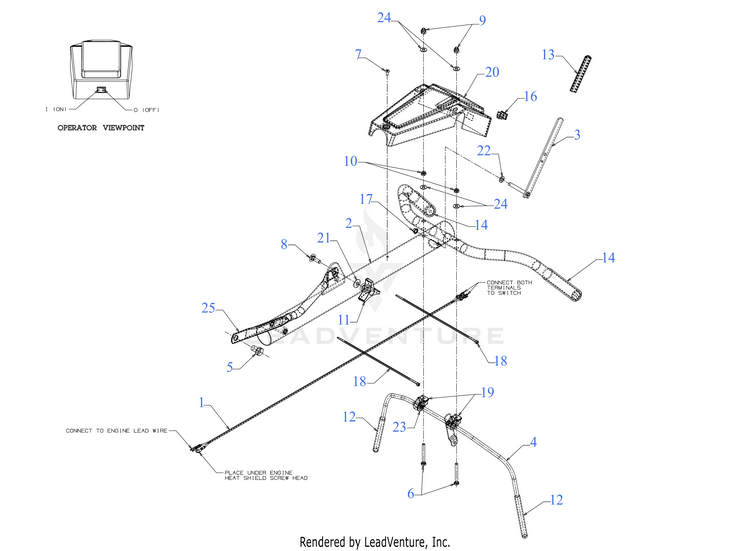

Schematic Image Zoomed
