Columbia 21AB455C897 (2015) Tiller

Model: 21AB455C897 (2015)

Back To Assemblies

Save Part Not Listed?
product name

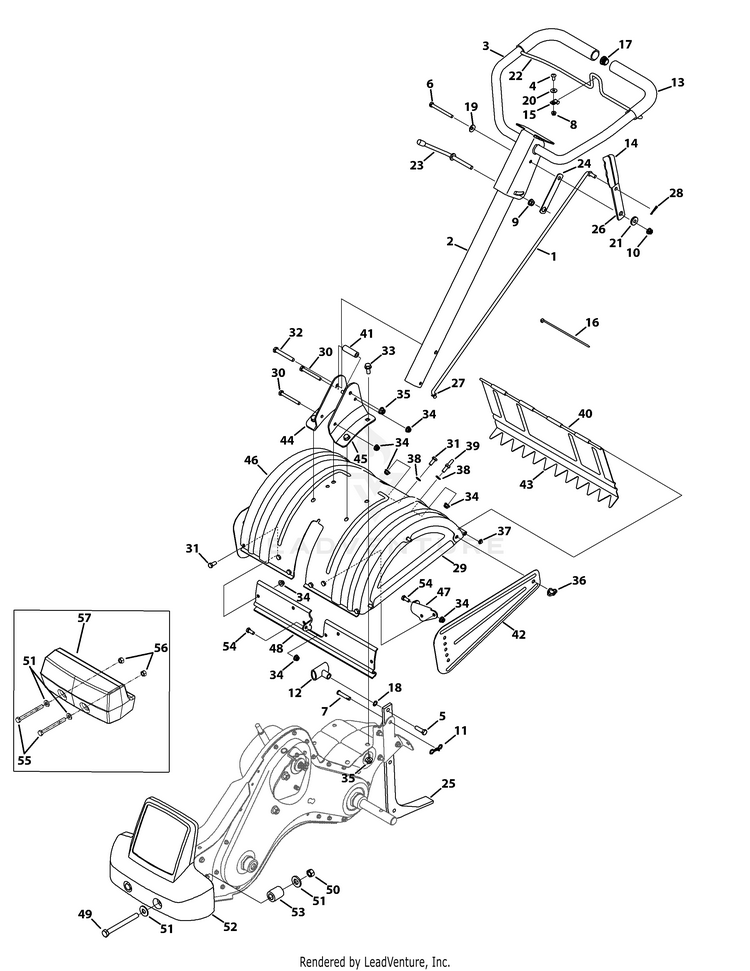

Handle

...
...
1
Shaft Rod MTD-747-1152
...
2
Lower Handle Tube Assembly MTD-649-0034-0606
...
3
UPPER HANDLE ASSEMBLY (MAJESTIC ORANGE) MTD-649-0041B-0606
...
4
Screw, 1/4-20 x 0625 MTD-710-0946
...
5
Hex Head Screw, 3/8-16:125 MTD-710-3005
...
6
Hex Head Screw, 5/16-18 x 325 MTD-710-3056
...
7
Clevis Pin MTD-711-0415
...
8
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
9
Flangelock Nut, 3/8-24 MTD-712-0379
...
10
Hex Flange Top L-Nut, 5/16-18 MTD-712-04063
...
11
Internal Cotter Pin MTD-714-04043
...
12
Small Tee Knob MTD-720-0210A
...
13
Foam Grip, 970 x 110 MTD-720-0278A
...
14
Grip, 1875 x 100 MTD-720-0313
...
15
Battery Clamp, 5/16 MTD-726-0273
...
16
Cable Tie, 85 LG MTD-726-0317
...
17
End Plug MTD-735-0246A
...
18
Washer, Flat, 385 x 620 x 033 MTD-936-0117
...
19
Washer, Bell, 340 x 872 x 060 MTD-736-0242
...
20
Washer, Flat, 260 x 720 x 060 MTD-736-3090
...
21
Spacer, Shoulder, 50 x 190 x 360 LG MTD-938-0958
...
22
Clutch Bail MTD-747-1219A-0637
...
23
Handle Adjustment Crank MTD-784-0190
...
24
Hex Nut Retainer Bracket MTD-784-0191
...
25
Tiller Depth Control MTD-786-0120-0637
...
26
Shaft Rod Lever MTD-786-0181-0606
...
27
Washer, Rubber, 33 ID x 87 OD x 125 MTD-735-0127
...
28
Hairpin Clip MTD-714-0104
...
29
End Cover Assembly MTD-686-0044B-0606
...
30
Hex Head Screw, 5/16-18 x 275 MTD-710-0176
...
31
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
32
Hex Head Screw, 3/8-16 x 275 MTD-710-3022
...
33
Hex Head Flange, 3/8-16 x 875 MTD-710-04482
...
34
Flangelock Nut, 5/16-18 MTD-712-04063
...
35
Flangelock Nut, 3/8-16 MTD-712-04065
...
36
Wing Nut, 5/16-18 W/ Bell Washer MTD-712-0421
...
37
Speed Nut Cap, 1/4 ROD MTD-926-0106
...
38
Washer, Flat, 344 x 62 x 033 MTD-736-0204
...
39
Screw, Hex, 5/16-18 x 75 MTD-938-0849
...
40
Tiller Flap Rod MTD-747-0432
...
41
Spacer, 322 x 625 x 200 MTD-750-0885A
...
42
Side Shield MTD-786-0090A-0606
...
43
Rear Tine Shield MTD-786-0113A-0606
...
44
RH Handle Mount Bracket MTD-786-0176-0606
...
45
LH Handle Mount Bracket MTD-786-0177-0606
...
46
Tine Shield MTD-786-0178A-0606
...
47
FRT Tine Shield Bracket MTD-786-0179-0637
...
48
FRT Tine Shield Spacer Bracket MTD-786-0180-0637
...
49
Hex Head Screw, 1/2-13 x 550 MTD-710-0506
...
50
Hex Nut, 1/2-20 MTD-912-3058
...
51
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
52
Counterweight MTD-731-1595
...
53
Hub, 636 ID x 100 OD x 94 MTD-750-0194
...
54
Hex Head Screw, 5/16-18 x 100 MTD-710-0376
...
55
Hex Bolt, 1/2-13 x 50 MTD-710-0382
...
56
Flange Lock Nut, 1/2-13 MTD-712-04150
...
57
COUNTERWEIGHT (If Equipped) MTD-723P0381
