Columbia 21AB455C897 (2014) Tiller

Model: 21AB455C897 (2014)

Save Part Not Listed?
product name

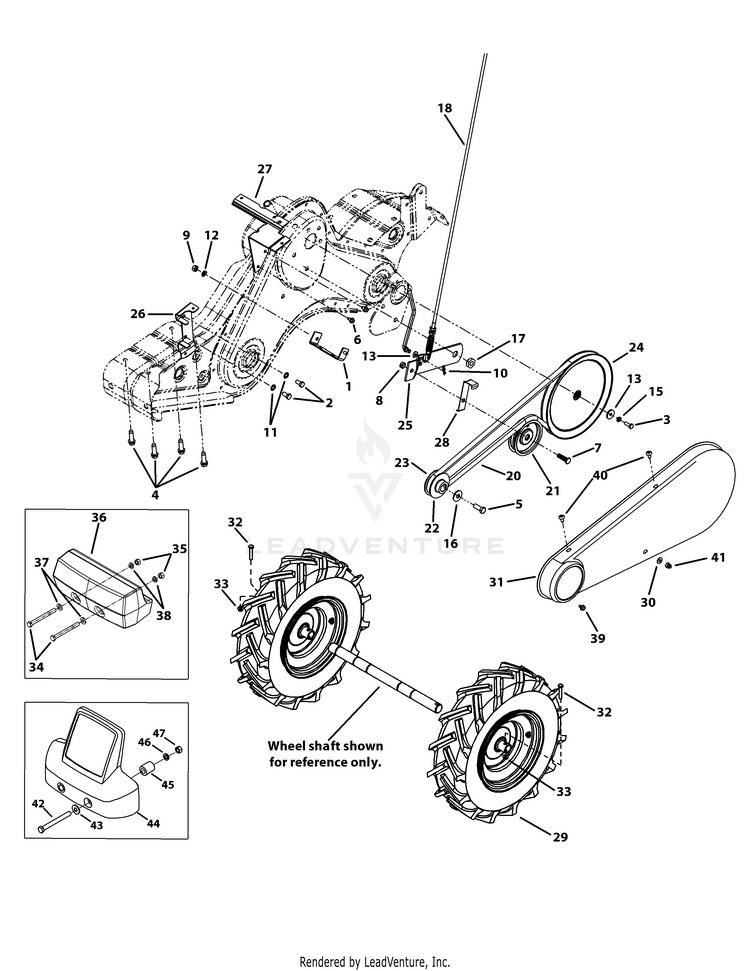

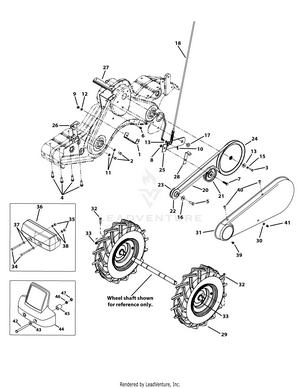

Drive & Wheel 21AB455C897

...
...
1
Belt Cover Bracket Ass'y MTD-686-0111
...
2
Hex Hd Cap Screw 5/16-24 x .625 Gr. 5 MTD-710-0170
...
3
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
4
Hex S-Tapp Scr 3/8-16 x 1.5 Gr. 5 MTD-710-0520
...
5
Hex L-Scr 3/8-24 x 1.00" Lg. Gr. 8 MTD-710-1039
...
6
Hex Wash S-Tapp Scr 1/4-20 x .625 MTD-710-1652
...
7
Hex Screw 3/8-16 x 1.25 Gr. 5 MTD-710-3005
...
8
Hex Cent L-Nut 3/8-16 Gr. 5 MTD-712-0266A
...
9
Flanged Lock Nut 5/16-18 Gr. 5 MTD-712-04063
...
10
Hairpin Clip MTD-714-0104
...
11
Internal L-Washer MTD-936-0104
...
12
L-Wash 5/16 ID MTD-936-0119
...
13
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
14
Shakeproof Spring Washer MTD-936-0271
...
15
L-Wash 1/4 ID MTD-936-0329
...
16
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
17
Shoulder Nut MTD-738-0876A
...
18
Clutch Cable MTD-946-1117
...
19
Idler Pulley Rod MTD-747-1159
...
20
Belt: 4L x 58.16" Lg. MTD-954-0434
...
21
Flat Idler w/flanges 3-3/4" OD MTD-756-0405
...
22
Outer Engine Pulley Half MTD-756-0971
...
23
Inner Engine Pulley Half MTD-756-0972
...
24
Input Pulley MTD-756-1162
...
25
Idler Bracket MTD-786-0064A
...
26
Belt Keeper Brkt. MTD-786-0185A-0637
...
27
Shift Cover Brkt. MTD-786-0187-0637
...
28
Idler Belt Keeper MTD-786-0193-0637
...
29
Wheel Ass’y 16.0 x 4.6 x 8 MTD-934-04231
...
30
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
31
Belt Cover MTD-784-0158B-0606
...
32
Hex Cap Screw 1/4-20 x 1.5" Lg. Gr. 8 MTD-710-05289
...
33
Flange Locknut 1/4-20 MTD-712-04064
...
34
Hex Bolt 1/2-13 x 5.00" Lg. MTD-710-0382
...
35
HEX NUT MTD-712-0206
...
36
COUNTERWEIGHT (If Equipped) MTD-723P0381
...
37
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
38
L-Wash. 1/2" I.D. MTD-736-0921
...
39
Hex Wash HD Tapp Scr 1/4-20 x .38 MTD-710-0653
...
40
Torx Mach. AB-Tapp Scr. 1/4 x .62" Lg. MTD-710-1017
...
41
Hex Lock Stop Nut 1/4-28 MTD-712-0392
...
42
Hex Hd. Scr. 1/2-13 X 5.5 MTD-710-0506
...
43
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
44
Counterweight (If Equipped) MTD-731-1595
...
45
Hub, .636 ID x 1.0 OD x .94 MTD-750-0194
...
46
L-Wash. 1/2" I.D. MTD-736-0921
...
47
Hex Nut 1/2-20 MTD-912-3066

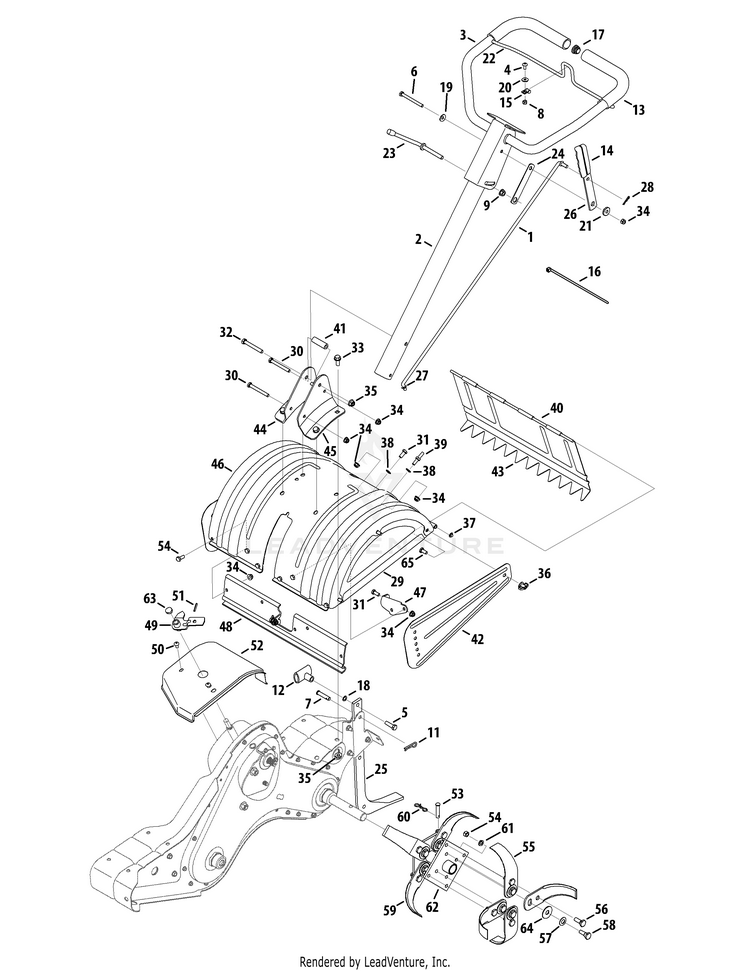

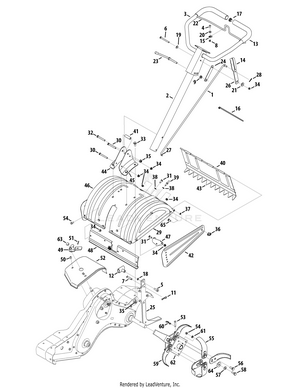

General Assembly 21AB455C897

...
...
1
Shift Rod MTD-747-1152
...
2
Lower Handle Ass’y MTD-649-0034-0606
...
3
UPPER HANDLE ASSEMBLY (MAJESTIC ORANGE) MTD-649-0041B-0606
...
4
Screw 1/4-20 x .625 MTD-710-0946
...
5
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
6
Hex Bolt 5/16-18 x 3.25 MTD-710-3056
...
7
Clevis Pin MTD-711-0415
...
8
Flanged Lock Nut 1/4-20 Gr. 5 MTD-712-04064
...
9
Hex Flange Nut 3/8-24 Thd. MTD-712-0379
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
11
Hairpin MTD-714-04043
...
12
Small "T" Knob MTD-720-0210A
...
13
Grip (2 req’d) MTD-720-0278A
...
14
Grip MTD-720-0313
...
15
Battery Clamp MTD-726-0273
...
16
Cable Tie MTD-726-0317
...
17
Vinyl End Plug MTD-735-0246A
...
18
Flat Washer .385 ID x .62 OD x .033 MTD-936-0117
...
19
Bell. Washer .345 ID x .88 OD x .06 MTD-736-0242
...
20
Flat Washer .260 x .720 x .060 MTD-736-3090
...
21
Shoulder Spacer MTD-938-0958
...
22
Bail Clutch MTD-747-1219A-0637
...
23
Handle Adj. Crank MTD-784-0190
...
24
Bracket Hex Nut Retainer MTD-784-0191
...
25
Depth Bar MTD-786-0120-0637
...
26
Shift Lever Rod MTD-786-0181-0606
...
27
Rubber Washer .33 ID x .125 MTD-735-0127
...
28
Hairpin Clip MTD-714-0104
...
29
Tine Shield Cover Ass’y MTD-686-0044B-0606
...
30
Hex Scr 5/16-18 x 2.75 MTD-710-0176
...
31
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
32
Hex Screw 3/8-16 x 2.75" Lg. MTD-710-3022
...
33
Carriage Bolt 3/8-16 x .875" Lg. MTD-710-04482
...
34
Flanged Lock Nut 5/16-18 Gr. 5 MTD-712-04063
...
35
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
36
Wing Nut MTD-712-0421
...
37
Push Cap MTD-926-0106
...
38
Flat Washer .34 ID x .62 OD x .03 MTD-736-0204
...
39
Hex Screw 5/16-18 x .75 MTD-938-0849
...
40
Tiller Flap Rod MTD-747-0432
...
41
Spacer .322 ID x .47 OD MTD-750-0885A
...
42
Side Shield MTD-786-0090A-0606
...
43
Rear Tine Shield MTD-786-0113A-0606
...
44
RHHandle Brkt. MTD-786-0176-0606
...
45
LH Handle Brkt. MTD-786-0177-0606
...
46
Tine Shield MTD-786-0178A-0606
...
47
Tine Shield Brkt. MTD-786-0179-0637
...
48
Shoulder Spacer MTD-786-0180-0637
...
49
Shift Crank Ass’y MTD-686-0109A
...
50
Hex Hd TT Scr. 1/4 x .625" Lg. MTD-710-1652
...
51
Spring Pin Roll 3/16 Dia. MTD-715-0120
...
52
SHIFT COVER MAJ ORANGE MTD-784-0208C-0606
...
53
Clevis Pin MTD-711-0415
...
54
Hex L-Nut 3/8-24 (Grade 5) MTD-712-3054
...
55
13" Dia. Articulating Tine MTD-742-0305A-0637
...
56
Shld. Scr. 1/2 Dia. x .175 MTD-938-0689
...
57
Bell Washer MTD-736-0253
...
58
Shld. Bolt 1/2" Dia. x .320 MTD-938-0688
...
59
Tine Adapter Assembly, 18" MTD-784-0160-0637
...
59
Tine Assembly (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1)) (not shown) MTD-984-0205A-0637
...
60
Bow Tie Cotter Pin MTD-714-04043
...
61
L-Wash. 3/8" I.D. MTD-736-0169
...
62
Tine Adapter Plate MTD-784-0161-0637
...
63
Cap MTD-731-07556
...
64
Stud, 5/16-18 x .75 MTD-710-1307

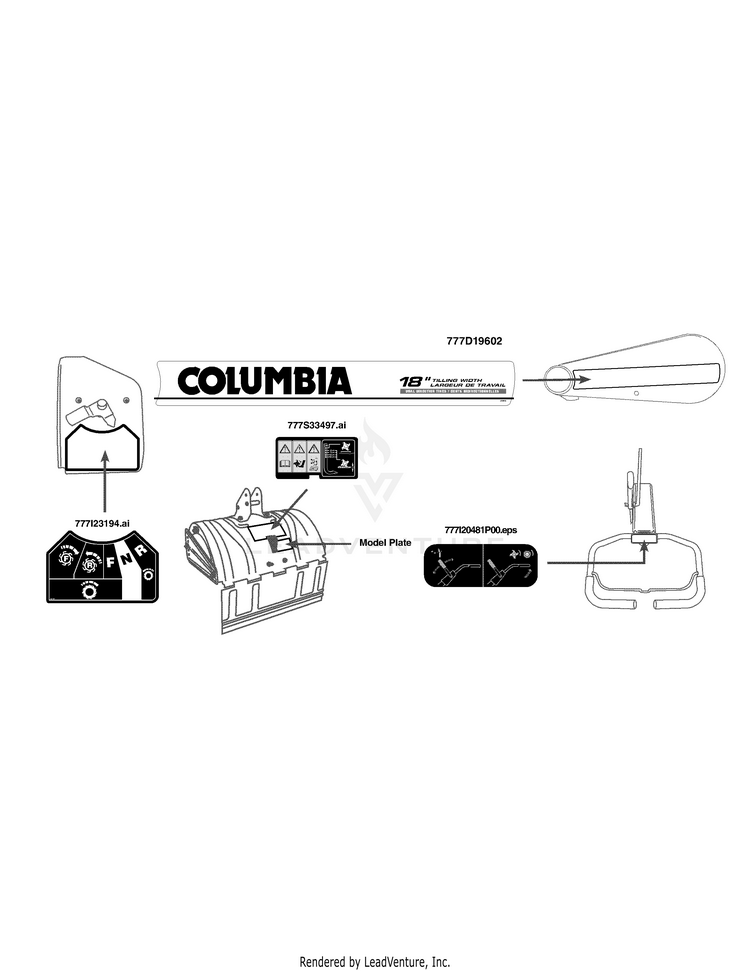

Label Map 21AB455C897

...
...
777D19602
LABEL-TILLER BELT GUARD COLUMBIA MTD-777D19602
...
777I20481
LABEL-TILLER HANDL MTD-777I20481
...
777I23194
LABEL-450 TILLER T MTD-777I23194
...
777S33497
LABEL-TILLER TINE SHIELD MTD-777S33497
...
777X44645
LABEL-SNOW NO ETHANOL MTD-777X44645

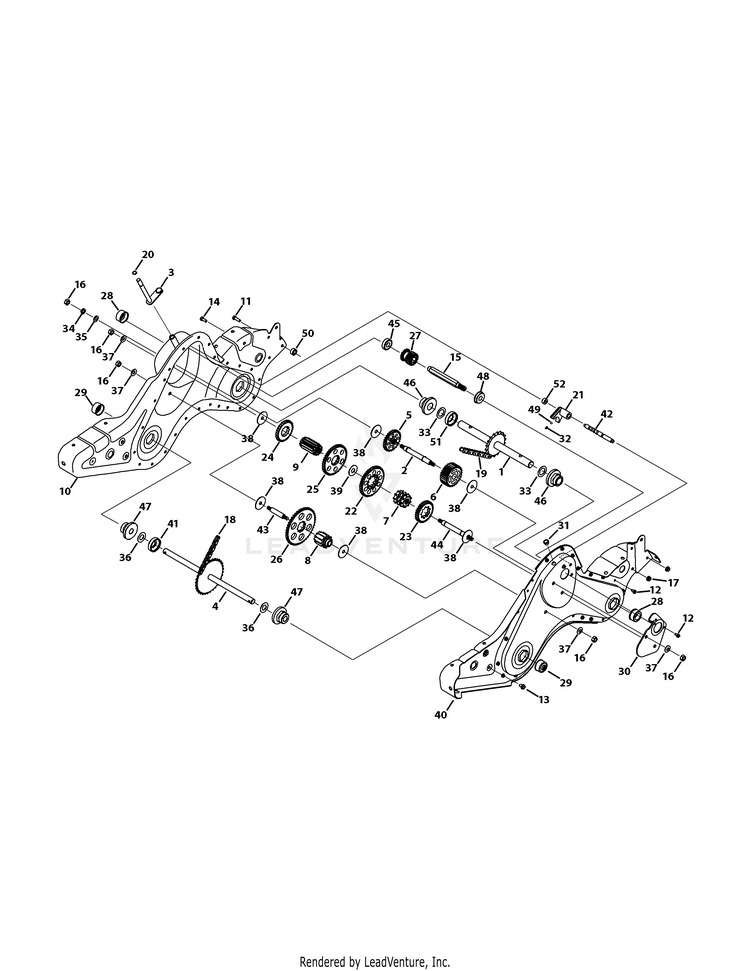

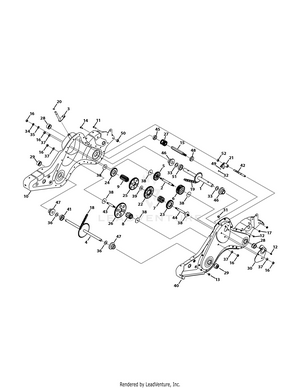

Transmission 21AB455C897

...
...
1
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
2
Jack Shaft Ass’y MTD-611-0128
...
3
Input Shaft Ass’y MTD-611-0129
...
4
Wheel Shaft Ass’y 33T MTD-611-04074A
...
5
30T REVERSE IDLER GEAR ASSEMBLY MTD-617-0058A
...
6
GEAR ASSEMBLY (FORWARD TINE) MTD-917-0059B
...
7
SPROCKET ASSEMBLY TINE INPUT 9T MTD-617-0060A
...
8
Wheel Input Sprocket Ass’y 10T MTD-617-0061
...
9
11T GEAR ASSEMBLY MTD-617-0062A
...
10
RH Housing Ass’y MTD-686-0108A-0637
...
11
Hex Scr 5/16 X 1.00 Gr. 5 MTD-710-0376
...
12
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
13
Hex Wash HD Scr 5/16-18 X .62 MTD-710-0604A
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
INPUT SHAFT MTD-711-1349B
...
16
Hex Nut 7/16-20 MTD-712-0378
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
#420 Chain 1/2 Pitch x 50 Links-Endless MTD-913-0367
...
19
#50 Chain 5/8 Pitch x 54 Links MTD-913-0484
...
20
Snap Ring MTD-716-0865
...
21
Shifting Fork MTD-717-0853A
...
22
SPUR GEAR 44T MTD-717-1582B
...
23
Spur Gear 30T MTD-717-1583
...
24
Spur Gear 30T MTD-717-1584
...
25
Spur Gear 44T MTD-717-1585
...
26
Spur Gear 44T MTD-717-1587
...
27
Spur Gear 16T MTD-717-1594
...
28
Seal 1.0" Shaft MTD-921-0378
...
29
Seal .75 Shaft MTD-721-0379
...
30
GEAR POSITIONER BRACKET MTD-786-0238A
...
31
Taper Cap Plug MTD-726-0277
...
32
Compression Spring .230" Lg. MTD-732-04778
...
33
Flat Washer 1.03 ID X 1.62 OD X .03 MTD-936-0163
...
34
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
35
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
36
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
37
Bell. Washer .45" ID x 1.0 OD MTD-736-0407
...
38
Thrust Wash. .445 ID x 1.92 OD MTD-736-0518
...
39
Flat Washer .635" ID x 1.59 OD MTD-736-3088
...
40
LH Chain Case Housing MTD-686-04129-0637
...
41
Spacer .75" ID x .50" Lg. MTD-950-0671
...
42
Detent Shaft 1/2" Dia. MTD-738-0645
...
43
Jack Shaft 5/8" Dia. x 2.38 MTD-738-0648
...
44
JACK SHAFT-.625 x 5.00 x 7/16-20 MTD-738-04424A
...
45
Ball Bearing MTD-941-0600
...
46
BEARING MTD-941-0420B
...
47
BEARING MTD-741-0421B
...
48
Ball Bearing w/snap ring MTD-941-0563
...
49
DETENT BALL .250 MTD-741-0862
...
50
Spacer .315" ID x .375" Lg. MTD-750-0258
...
51
Step Spacer MTD-950-0570
...
52
Spacer .505 ID x .88 OD MTD-750-0664
...
xx
GEARCASE ASSEMBLY (not shown) MTD-986-04074G
