Columbia 21AB455C897 (2011) Tiller

Model: 21AB455C897 (2011)

Back To Assemblies

Save Part Not Listed?
product name

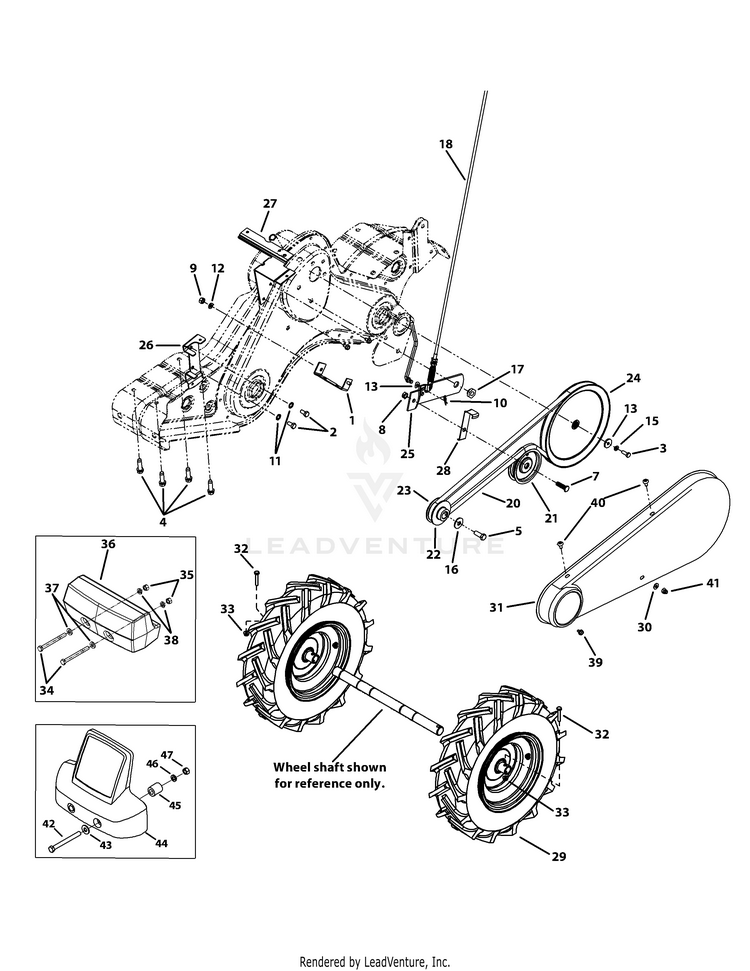

Drive Assembly 21AB455C

...
...
1
Belt Cover Bracket Ass'y MTD-686-0111
...
2
Hex Screw 5/16-24 x .62 MTD-710-0237
...
3
Hex Scr 1/4-28 x .75 MTD-710-0412
...
4
Hex S-Tapp Scr 3/8-16 x 1.5 Gr. 5 MTD-710-0520
...
5
Hex L-Scr 3/8-24 x 1.00" Lg. Gr. 8 MTD-710-1039
...
6
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
7
Hex Screw 3/8-16 x 1.25 Gr. 5 MTD-710-3005
...
8
Hex Cent L-Nut 3/8-16 Gr. 5 MTD-712-0266A
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Hairpin Clip MTD-714-0104
...
11
Internal L-Washer MTD-936-0104
...
12
L-Wash 5/16 ID MTD-936-0119
...
13
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
14
Shakeproof Spring Washer MTD-936-0271
...
15
L-Wash 1/4 ID MTD-936-0329
...
16
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
17
SHOULDER NUT MTD-738-0876A
...
18
Clutch Cable MTD-946-1117
...
19
Idler Pulley Rod MTD-747-1159
...
20
Belt: 4L x 58.16" Lg. MTD-954-0434
...
21
Flat Idler w/flanges 3-3/4" OD MTD-756-0405
...
22
Outer Engine Pulley Half MTD-756-0971
...
23
Inner Engine Pulley Half MTD-756-0972
...
24
Input Pulley MTD-756-1162
...
25
Idler Bracket MTD-786-0064A
...
26
Belt Keeper Brkt. MTD-786-0185A-0637
...
27
Shift Cover Brkt. MTD-786-0187-0637
...
28
Idler Belt Keeper MTD-786-0193-0637
...
29
Wheel Ass'y 16.0 x 4.6 x 8 MTD-934-04231
...
30
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
31
BELT COVER MTD-784-0158B
...
32
Hex Cap Screw1/4-20 x 1.5" Lg. MTD-710-0606
...
33
Flange Locknut 1/4-20 MTD-712-04064
...
34
Hex Bolt 1/2-13 x 5.00" Lg. MTD-710-0382
...
35
HEX NUT MTD-712-0206
...
36
COUNTERWEIGHT MTD-723P0381
...
37
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
38
L-Wash. 1/2" I.D. MTD-736-0921
...
39
Hex Wash HD Tapp Scr 1/4-20 x .38 MTD-710-0653
...
40
Torx Mach. AB-Tapp Scr. 1/4 x .62" Lg. MTD-710-1017
...
41
Hex Lock Stop Nut 1/4-28 MTD-712-0392
...
42
Hex Hd. Scr. 1/2-13 X 5.5 MTD-710-0506
...
43
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
44
Counterweight MTD-731-1595
...
45
Hub, .636 ID x 1.0 OD x .94 MTD-750-0194
...
46
L-Wash. 1/2" I.D. MTD-736-0921
...
47
Hex Nut 1/2-20 MTD-912-3066
