Columbia 17ARCBDT597 (2014) Z-Series

Model: 17ARCBDT597 (2014)

Back To Assemblies

Save Part Not Listed?
product name

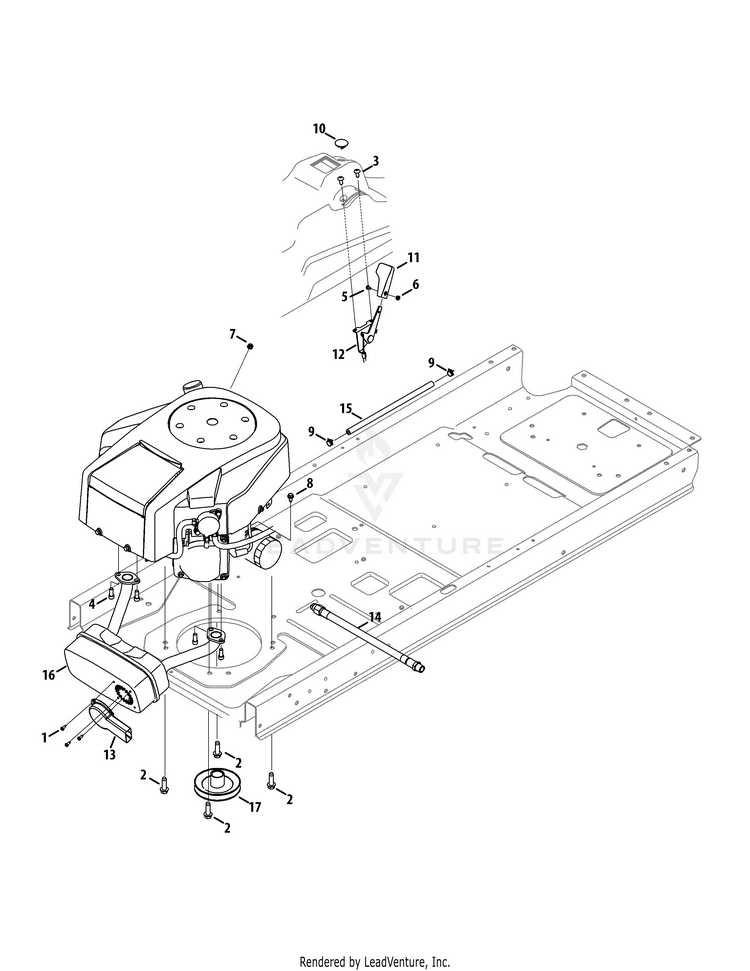

Engine Accessories (Kohler)

...
...
1
Hex Washer Screw #8-18 x .500 MTD-710-0227
...
2
SCREW 3/8-16 X 1 MTD-710-04683C
...
3
SCREW 1/4-20 x .5 MTD-710-05070A
...
4
Socket Head Screw 5/16-18 x .750 MTD-710-1314A
...
5
Screw #8-32 x .375 MTD-710-3217
...
6
Hex Nut #8-32 MTD-712-0142
...
7
Flange Lock Nut, 1/4-20 MTD-712-04064
...
8
Hex Washer Screw 1/4-20 x .625 MTD-710-1652
...
9
Hose Clamp .490 Dia. MTD-726-0205
...
10
Choke Plug MTD-731-1999
...
11
Throttle Control Knob MTD-731-04914
...
12
Throttle/Choke Control Cable MTD-946-05145
...
13
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
14
OIL DRAIN HOSE W/VIBRA SEAL MTD-751-10291D
...
15
FUEL HOSE 1/4-36" MTD-751-22813-36
...
16
EXHAUST MUFFLER (KH TWIN) MTD-751P10528E
...
17
TRANSMISSION DRIVE PULLEY MTD-756-04494C
