Columbia 13AV761F597 (2008) Lawn Tractor

Model: 13AV761F597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

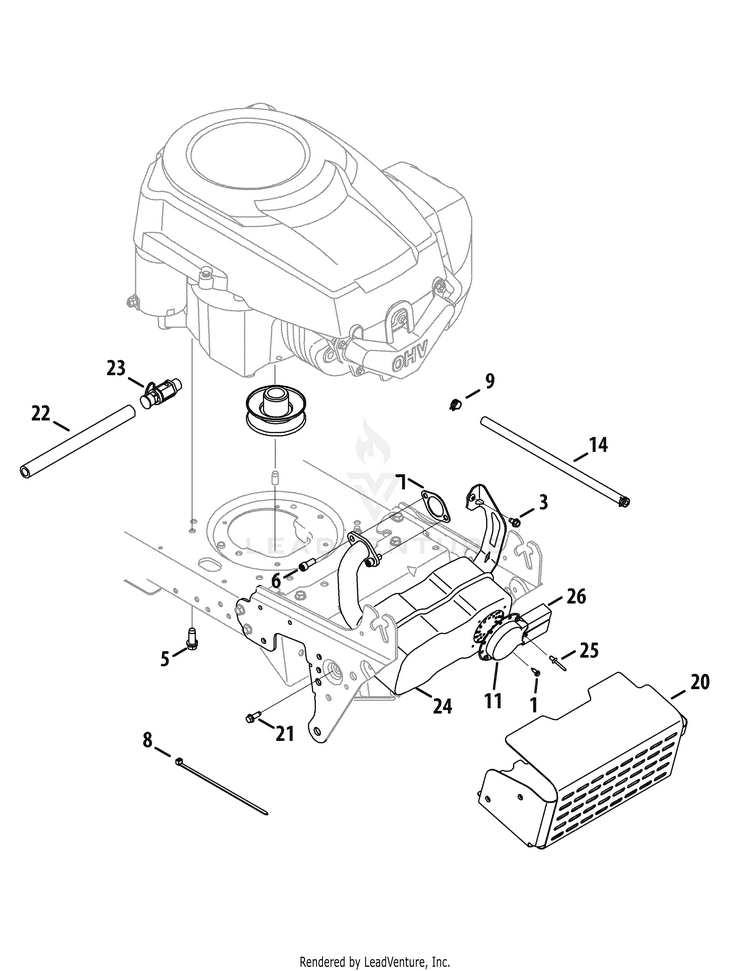

Engine Accessories

...
...
1
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
3
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
5
SCREW 3/8-16 X 1 MTD-710-04683C
...
6
Sems Hex Nut 1/4-20 MTD-712-0271
...
7
Exhaust Gasket MTD-BS-692236
...
8
Cable Tie MTD-725-0157
...
9
Hose Clamp MTD-726-0205
...
11
Muffler Deflector MTD-751-0564B
...
14
Fuel Line *CHOOSE LENGTH WHEN ORDERING* MTD-751-10349
...
20
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
21
Thd Forming Scr. 1/4-20 x .75 Lg. MTD-710-0642
...
22
Oil Drain Ext. Hose MTD-751-3141-14
...
23
Oil Drain MTD-951-10517A
...
24
MUFFLER MTD-951-10529A
...
25
Rivet MTD-728-04000
...
26
EXHAUST DELECTOR (LONG) MTD-751-11053B
