product name

Columbia 13AV761F597 (2008) Lawn Tractor

Model: 13AV761F597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

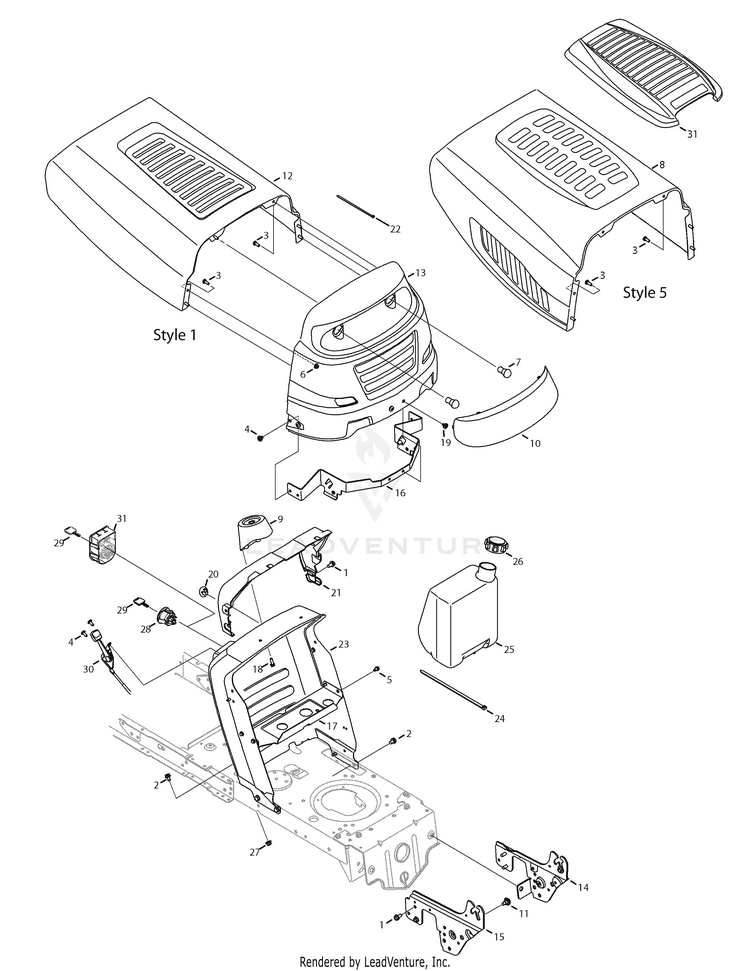

Hood & Dash Assembly

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Hex Wash HD TT Scr 5/16-12 x .625 MTD-710-0604A
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
SCREW 1/4-20 x .500 MTD-710-04483
...
5
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
6
Hex L-Flg.Nut 1/4-20 Gr. F, Nylon MTD-712-04064
...
7
Miniature Lamp 12V Socket Type MTD-925-0963
...
8
Hood - Style 5 *CHOOSE COLOR WHEN ORDERING* MTD-783-05683
...
9
Steering Support MTD-731-04945
...
10
GRILLE LENS 1 STYLE MTD-731P04949A
...
11
Shoulder Screw .43 x .29, 5/16-18 MTD-738-04091A
...
12
HOOD-1 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-05684
...
13
GRILLE-1 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-05685A
...
14
LH Pivot Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-05327B
...
15
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
16
Grill Pivot Bracket MTD-783-05454-0637
...
17
Gas Tank Support Bracket MTD-783-04584B-0637
...
18
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
19
SCREW 5/16-18 x .750 MTD-710-04484
...
20
DashPlug MTD-731-05265
...
21
Collar, Dash MTD-731-05078C
...
22
Cable Tie MTD-725-0157
...
23
Dash Assembly (w/o RMC) *CHOOSE COLOR WHEN ORDERING* MTD-783-04873B
...
23
DASH-LT-5 RMC Models equipped with RMC (Reverse Caution Model) *CHOOSE COLOR WHEN ORDERING* MTD-783-04892B
...
23
DASH (POWDER BLACK) Models equipped with RMC (Reverse Caution Model) MTD-983-04889C-0637
...
24
Cable Tie MTD-726-0230
...
25
FUEL TANK 1.36 GAL MTD-751-0555D
...
26
TANK CAP MTD-751-0603B
...
27
Hex L-Flg.Nut 5/16-18 Gr. F, Nylon MTD-712-04063
...
28
Switch (w/o RMC) 3 Position MTD-925-04659
...
28
IGNITION MODULE SWITCH RMC (MAN PTO BLK) Models equipped with RMC (Reverse Caution Model) MTD-925-06119C
...
29
Ignition Key w/o Plastic Cover MTD-925-1745A
...
30
Choke/Throttle Cable 25" MTD-746-04364
...
31
Hood Cover - Style 5 Style 5 only MTD-731-05522A
...
31
MAIN HARNESS (3 POS/ACDC/BULB) MTD-925-04567K
...
31
MAIN HARNESS (RMC/AM/ACDC/BULB) Models equipped with RMC (Reverse Caution Model) MTD-725P04432P
...
31
MAIN HARNESS (RMC/AM/ACDC/BULB) Models equipped with RMC (Reverse Caution Model) MTD-725P04432P
...
31
Headlight Lens Reflector MTD-777X41984
