Columbia 13AV761F597 (2008) Lawn Tractor

Model: 13AV761F597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

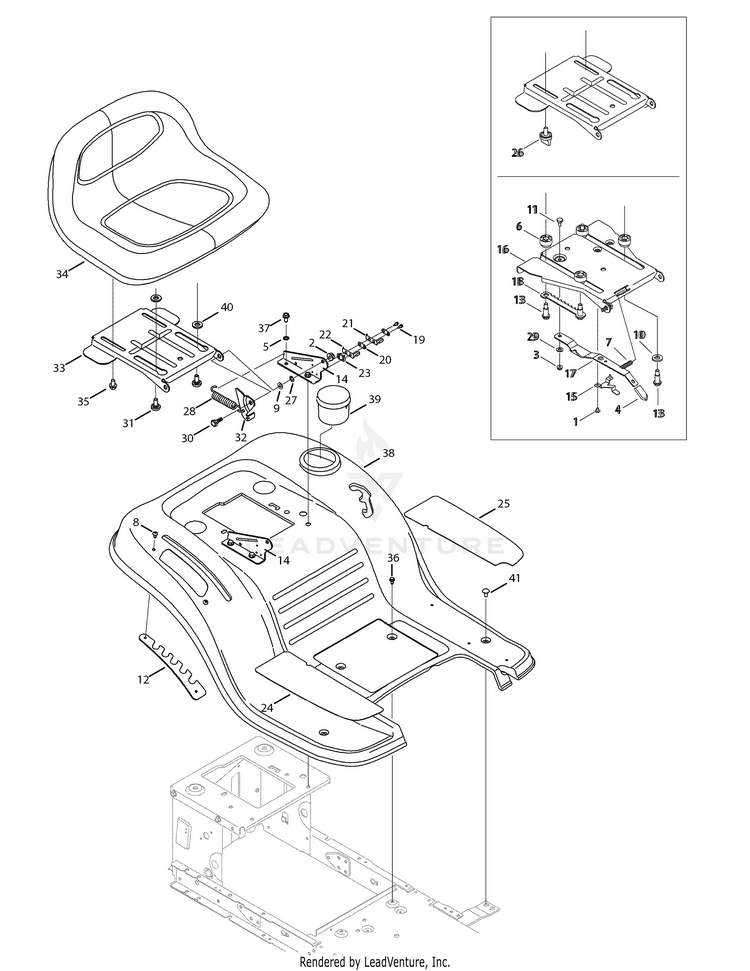

Seat & Fender Assembly

...
...
1
Hex B-Tapp Wash Scr #10-16 x .38 MTD-710-1268
...
2
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
3
Hex L-Flanged Nut 1/4-20 Gr. F, Nylon MTD-712-04064
...
4
Seat Adjuster Grip MTD-720-0309A
...
5
Lockwasher 5/16 ID MTD-736-0607
...
6
Spacer MTD-731-04074
...
7
Compression Spring .41 x 1.5" Lg MTD-732-0499
...
8
SCREW 1/4-20 x .500 MTD-710-04483
...
9
Cupped Wash. .345 ID x .88 OD x .060 MTD-736-0242
...
10
Flat Washer .531 ID x 1.0 OD MTD-736-3019
...
11
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
12
Lift Adjustment Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04843
...
13
Shoulder Screw MTD-738-0966A
...
14
Seat Mounting Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-1489C
...
15
Seat Stop MTD-783-0611
...
16
SEAT PIVOT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-0738D
...
17
SEAT ADJUSTMENT LEVER MTD-783-0739A-0637
...
18
Seat Adjustment Selector MTD-783-0753
...
19
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
20
Insulator Plate MTD-726-0279
...
21
Spring Switch MTD-925-1303
...
22
Seat Spring Switch MTD-725-1439
...
23
Insulator Plate MTD-726-0278
...
24
Foot Pad, Abrasive, RH MTD-723-04025
...
25
Foot Pad, Abrasive, LH MTD-723-04026
...
26
Knob MTD-720-04061
...
27
Push Speed Nut Not required on models with Ref. 26 MTD-726-0201
...
28
Extension Spring .84 Dia. x 4.6 MTD-732-1184
...
29
Flat Washer .344 ID x .62 OD x .033 MTD-736-0204
...
30
Shld. Bolt .437" x .286" MTD-738-0296
...
31
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
32
Seat Lift Bracket MTD-783-0209D
...
33
Seat Pivot Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04081B
...
34
MEDIUM BACK SEAT MTD-757P06245
...
34
MEDIUM BACK SEAT MTD-757P06245
...
35
Screw 3/8-16 x .875 MTD-710-04482
...
36
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
37
SCREW 5/16-18 x .750 MTD-710-04484
...
38
FENDER *CHOOSE COLOR WHEN ORDERING* MTD-783-04587E
...
39
Cup Holder MTD-731-04591A
...
40
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
40
Fl-Wash. .344" I.D. x .62" MTD-736-0140
