Columbia 13AV761F597 (2008) Lawn Tractor

Model: 13AV761F597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

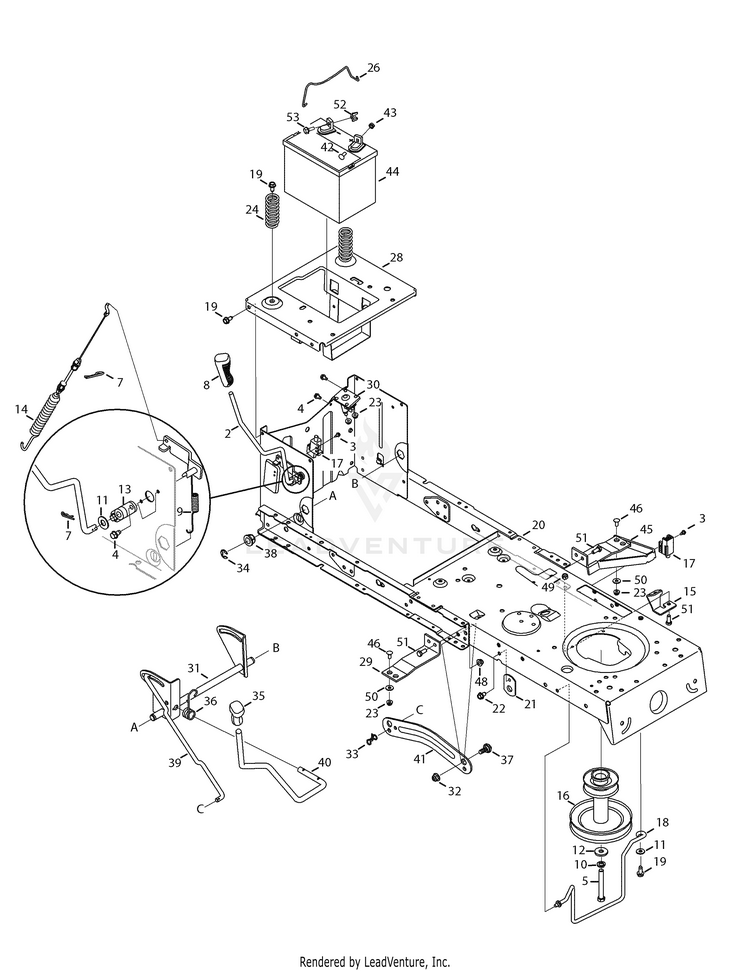

Upper Frame & Battery

...
...
1
Deck Lift Link *CHOOSE COLOR WHEN ORDERING* MTD-783-0678C
...
2
PTO Handle Assembly *CHOOSE COLOR WHEN ORDERING* MTD-647-04096A-0637
...
3
Shoulder Scr #10-16 x .50" Lg. MTD-738-04237A
...
4
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
5
Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5 MTD-710-04608
...
6
Frame Brace Bracket MTD-783-05389A-0637
...
7
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
8
Handle Grip 3/8 MTD-720-04049A
...
9
Extension Spring MTD-732-04276A
...
10
Lockwasher 7/16 ID MTD-936-0171
...
11
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
12
Flat Washer .450 x 1.25 x .164 MTD-736-0322
...
13
PTO Bearing MTD-741-04119A
...
14
Deck Engagement Cable MTD-946-04173E
...
15
Frame Support Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04753
...
16
Engine Pulley 3.39 x 6.12 dia. MTD-756-04196A
...
17
Interlock Switch MTD-725-04363
...
18
Belt Keeper Rod (38" Deck) MTD-747-04332A
...
18
Belt Keeper Rod (42" Deck) MTD-747-04857
...
19
SCREW 5/16-18 x .750 MTD-710-04484
...
20
Frame *CHOOSE COLOR WHEN ORDERING* MTD-683-04450
...
21
Pedal Support Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04536B
...
22
Hex Wash HD TT Scr 5/16-18 x .625 MTD-710-0604A
...
23
Hex L-Flanged Nut 1/4-20 Gr. F, Nylon MTD-712-04064
...
24
Compression Spring 1.28 x 3.125 MTD-732-04035
...
25
LIFT BRACKET 50" DECK MTD-783-04462A
...
26
Battery Rod MTD-683-04448
...
27
Battery Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04869A-0637
...
28
Seat Frame Bracket MTD-783-04548D-0637
...
29
RUNNINGBOARD BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04637
...
30
12V SOLENOID MTD-725-04439B
...
31
Lift Shaft *CHOOSE COLOR WHEN ORDERING* MTD-683-04155A
...
32
Flange Lock-Nut 3/8-16 Gr. F, Nylon MTD-712-04065
...
33
Cotter Pin .08 x 1.56 Intern - R.H. MTD-714-04043
...
33
Cotter Pin 1/8" Dia. MTD-714-0470
...
34
E Ring .625 Dia. MTD-716-0106A
...
35
Handle Grip MTD-720-0311
...
36
Torsion Spring MTD-732-04225
...
37
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
38
Hex Flange Bearing .630 ID MTD-941-0225
...
39
Lift Rod MTD-747-04393
...
40
Deck Lift Handle MTD-747-04282
...
41
Deck Lift Arm RH MTD-783-04494C
...
41
Lift Arm LH *CHOOSE COLOR WHEN ORDERING* MTD-783-04711C
...
42
Carriage Bolt 1/4-10 x .75 Gr. 5 MTD-1186310
...
43
Sems Hex Nut 1/4-20 MTD-712-0271
...
44
BATTERY MTD-925-1707D
...
45
Support Bracket Ass'y *CHOOSE COLOR WHEN ORDERING* MTD-683-04195
...
46
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
47
Screw, 5/16-18 x .625 MTD-710-3025
...
48
Hex L-Flg Nut 5/16-18 Gr. F, Nylon MTD-712-04063
...
49
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
50
Flat Washer .28 x .74 x .063 MTD-736-0173
...
51
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
52
WING NUT 1/4-20 MTD-712-3087
...
53
Shoulder Screw .25 x .15: 1/4-20 MTD-738-1132
