Columbia 13AV761F597 (2008) Lawn Tractor

Model: 13AV761F597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

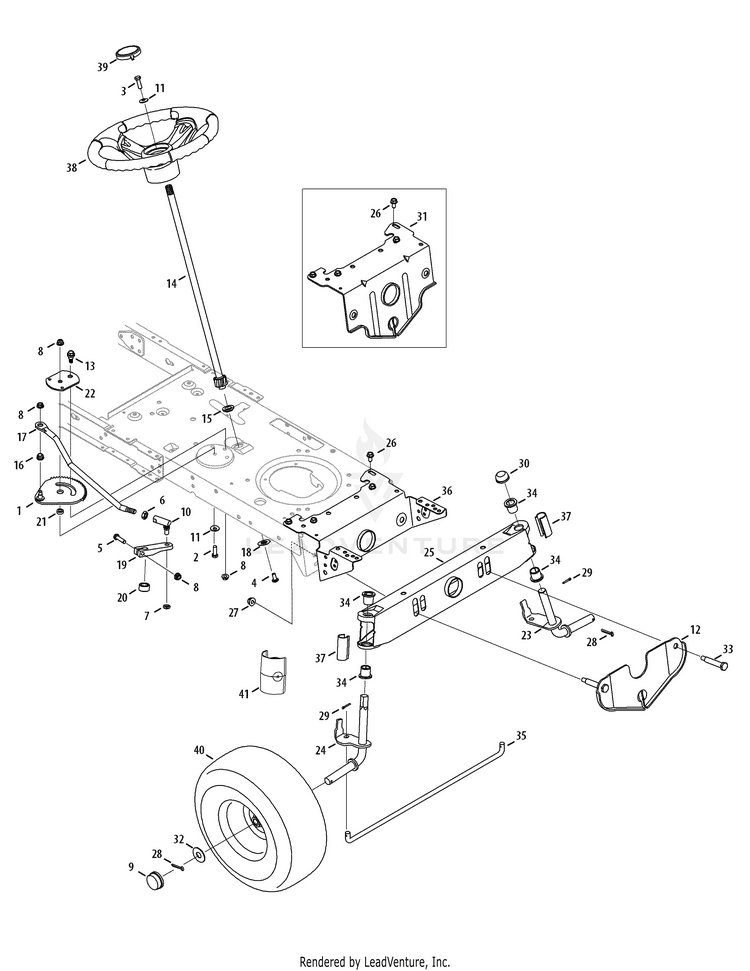

Steering Assembly

...
...
1
Steering Gear Assembly MTD-617-04024A
...
2
Hex Scr 5/16 x 1,00 Gr. 5 MTD-710-0376
...
3
Hex Screw 5/16-18 x 1.00 Special MTD-710-0643
...
4
Machine Screw 5/16-18 x .75 MTD-710-1309
...
5
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
6
Hex Jam Nut 7/16-20 MTD-912-0240
...
7
Hex Cent-L Jam Nut 3/8-24 MTD-712-0262
...
8
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
9
Plastic Hub Cap MTD-931-0484A
...
10
Ball Joint, 7/16 - 20 MTD-923-0448A
...
11
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
12
Front Deck Hanger Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04568
...
13
Shoulder Screw .435 x .3485, 5/16-18 MTD-738-04141
...
14
Steering Shaft MTD-738-0919B
...
15
Bearing, Flange, Hex 5/8 MTD-741-04124
...
16
Plastic Bushing .380 ID MTD-941-0475
...
17
Drag Link, Steering MTD-747-05385A
...
18
Cap, 1.25 x .16 MTD-948-0389
...
19
Steering, Block MTD-748-04278
...
20
Spacer .710 ID x .125 OD x .56 MTD-748-04068
...
21
Spacer .322 ID x .625 OD x .21 MTD-750-04418
...
22
STABILIZER PLATE MTD-783P08577A
...
23
Axle Assembly, LH MTD-938-04007A-0637
...
24
Axle Assembly, RH MTD-638-04008P
...
25
Pivot Bar *CHOOSE COLOR WHEN ORDERING* MTD-683-0128B
...
26
SCREW 5/16-18 x .750 MTD-710-04484
...
27
Flange Lock-Nut 3/8-16 Gr. F, Nylon MTD-712-04065
...
28
COTTER PIN-5/32 DIA MTD-714-0162
...
29
Cotter Pin 1/8" Dia x .75 MTD-914-0474
...
30
Push Cap, .750 MTD-726-0341
...
31
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-05326D-0637
...
32
Flat Washer MTD-736-0316
...
33
Shoulder Screw .500 x 2.380, 3/8-16 MTD-738-04128
...
34
Flange Bearing .760 ID x .937 OD MTD-741-0660A
...
35
Tie Rod MTD-747-04299A
...
36
Pivot Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04601C
...
37
Axle End Cap, Standard MTD-731-04057A
...
38
Steering Wheel, Standard Grip MTD-631-04028
...
38
STEERING WHEEL MTD-631-04008B
...
39
Steering Wheel Cap (sprig logo) MTD-731-04040
...
39
Steering Wheel Cap (w/o logo) MTD-731-04039
...
40
WHEEL ASSEMBLY (15 x 6 x 6) *CHOOSE COLOR WHEN ORDERING* MTD-634-05067
...
40
Tire Only, Square Shoulder *CHOOSE COLOR WHEN ORDERING* MTD-734-1731
...
40
RIM ASSEMBLY (6 X 4.5) Plastic Bushing, Not shown *CHOOSE COLOR WHEN ORDERING* MTD-634-05066
...
40
Bearing, Flange Plastic Bushing, Not shown MTD-741-0516B
...
40
Bearing, Flange w/Fitting Plastic Bushing, Not shown MTD-741-0990B
...
40
WHEEL ASSEMBLY (15 x 6 x 6) Ball Bearing *CHOOSE COLOR WHEN ORDERING* MTD-634-04199
...
40
Tire Only, Square Shoulder *CHOOSE COLOR WHEN ORDERING* MTD-734-1731
...
40
RIM ASSEMBLY (6 x 4.5) Ball Bearing, Not shown *CHOOSE COLOR WHEN ORDERING* MTD-934-04091B
...
40
BRG-BALL .754 ID x 1.750 OD Ball Bearing, Not shown MTD-941-04137A
...
40
Lube Fitting Not shown MTD-737-0224
...
41
Pivot Bar End Cap (w/grease fitting) MTD-931-1291A
...
41
Pivot Bar End Cap (w/o fitting) MTD-731-04057A
