Columbia 13AQ62GP897 (2009) Lawn Tractor

Model: 13AQ62GP897 (2009)

Back To Assemblies

Save Part Not Listed?
product name

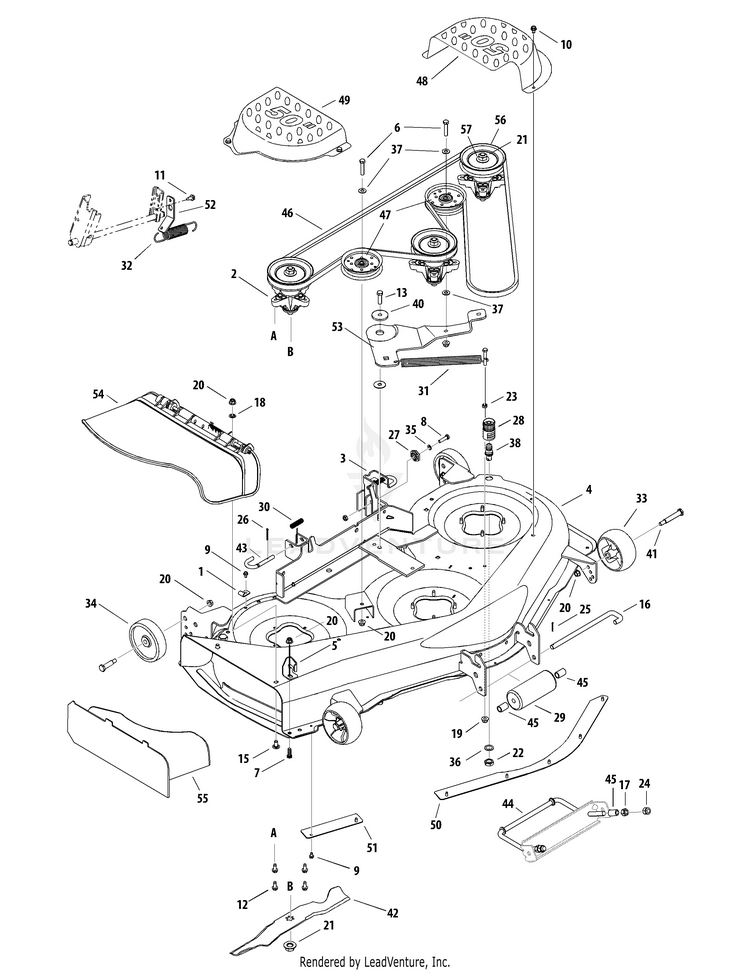

Deck Assembly

...
...
1
Retainer Hook Brkt. MTD-96606
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
2
HEX NUT Not shown MTD-712-0417A
...
2
Flat Washer:.760 x 1.50 X .120 Not shown MTD-736-0315
...
2
Grease Fitting:3/16:LNC #70:DRI Not shown MTD-937-3000
...
2
Spindle Shaft:5.75 LG. Not shown MTD-738-1010A
...
2
BALL BEARING Not shown MTD-741P0919B
...
2
Spacer:.790 ID x 1.25 OD X .175 Not shown MTD-748-0160A
...
2
Spacer:.80 x 1.10 x 1.322 Not shown MTD-750-1000
...
2
Spacer:.79 x 1.82 x .55 Not shown MTD-750-1349A
...
2
Deck Pulley:V TYP:5.39 Not shown MTD-756-04216
...
3
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
4
Weldment, 50-inch Deck MTD-983-04075B-0637
...
5
Chute Stop Deflector MTD-703-3279
...
6
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
7
Screw, 3/8-16 x 1.0 MTD-710-04095
...
8
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
9
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
10
Hex Wash HD AB Tap Scr 5/16-18 x .75 MTD-710-0607
...
11
Hex Wash HD AB Tap Scr 5/16-12 x .75 MTD-710-0726
...
12
SCREW 5/16-18 x .750 MTD-710-04484
...
13
Screw, 3/8-16 x 1.25 MTD-710-3005
...
15
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
16
ROLLER PIN .5"DIAX10.06" MTD-711-1737
...
17
HEX NUT MTD-712-0206
...
18
Push Nut 3/8 MTD-712-0229
...
19
Flange Locknut 5/16-18 Gr. F, Ny lon MTD-712-04063
...
20
Flange Lock-Nut 3/8-16 Gr. F Ny lon MTD-712-04065
...
21
HEX NUT MTD-712-0417A
...
22
Nut, Hex, M16-1.5 MTD-712-0641
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex L-Nut 1/2-13 MTD-712-3083
...
25
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
26
Cotter Pin 1/8" Dia. MTD-714-0470
...
27
Deck Adjustment Gear MTD-917-04074
...
28
Wa ter Noz zle Adap tor MTD-921-04041
...
29
Front Roller MTD-731-3005
...
30
Compression Spring .531 OD x 1.75 Lg. MTD-932-0306A
...
31
Extension Spring .94 x 6.74 MTD-732-0459C
...
32
Extension Spring 1.5 x 5.99 MTD-732-0934
...
33
Deck Wheel 5.0 MTD-734-04155
...
34
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
35
L-Wash 5/16 ID MTD-936-0119
...
36
Lockwasher 5/8 MTD-736-0225
...
37
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
38
Port, Wa ter MTD-737-04003D
...
40
Spacer, Shoulder .884 x .190 MTD-738-04162C
...
41
Shoulder Screw MTD-938-3056
...
42
Blade 17.90 MTD-942-04053C
...
43
Deck Release Pin MTD-747-1116
...
44
Deck Adjustment Rod MTD-747-1324
...
45
Spacer .55 ID x .75 MTD-950-0151
...
46
V-Belt MTD-954-04164
...
47
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
48
LH Belt Cover *CHOOSE COLOR WHEN ORDERING* MTD-783-04399
...
49
RH Belt Cover *CHOOSE COLOR WHEN ORDERING* MTD-783-04400
...
50
Deck Skirt Cen ter MTD-783-04414A-0637
...
51
Deck Shirt RH MTD-783-04415-0637
...
52
LIFT BRACKET 50" DECK MTD-783-04462A
...
53
Idler Bracket MTD-783-05303-0637
...
54
Chute Ass’y MTD-631-04092C
...
55
Mulching Plug MTD-731-04651
...
56
Deck Pulley 5.39 Dia. MTD-756-04216
...
57
Flat Washer .76 ID x 1.5 OD x .12 MTD-736-0315
