Columbia 13AP616G597 (2008) Lawn Tractor

Model: 13AP616G597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

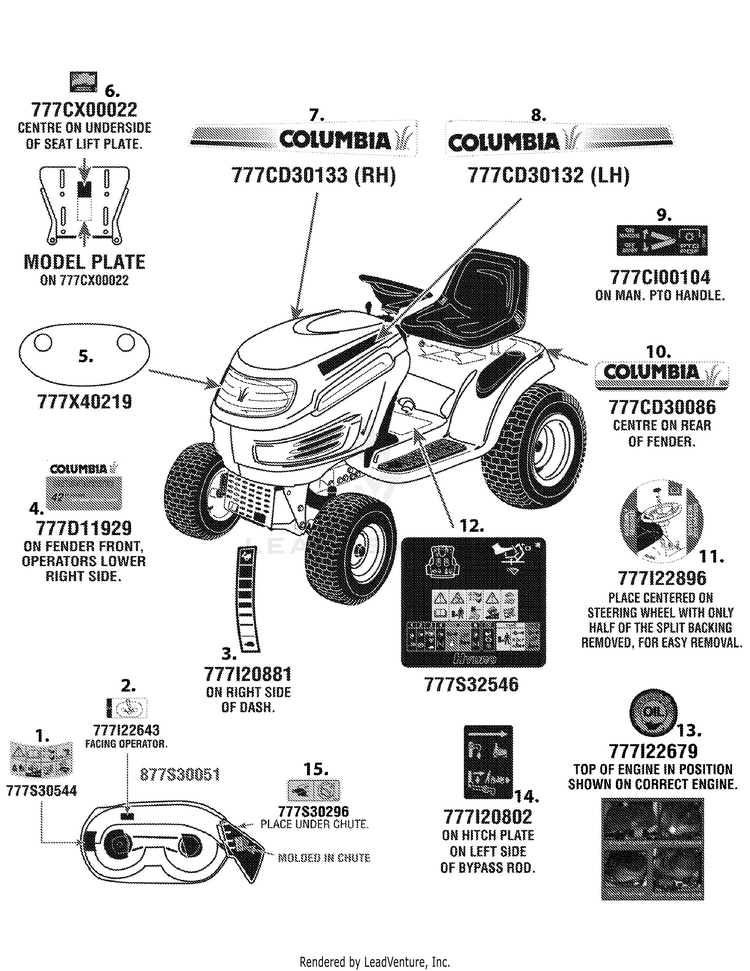

Label Map 42-inch

...
...
1
LABEL-DECK SAFETY MTD-777S30544
...
2
LABEL-DECK BELT ROUTE 42" MTD-777I22643
...
3
LABEL-DASH Model 13AP616G597 MTD-777I20881
...
3
LABEL-DASH THROTTL Model 13AV616G597 MTD-777I20882
...
4
LABEL-HYD 42" FNDR COLUMBIA Model 13AP616G597 MTD-777D11929
...
4
LABEL-HYD 42" FNDR COLUMBIA Model 13AV616G597 MTD-777CD30143
...
5
LABEL-LENS REFLECT MTD-777X40219
...
6
LABELX: MADE IN USA MTD-777CX00022
...
7
LABEL-HOODSIDE (RH) STY 6 COLUMBIA MTD-777CD30133
...
8
LABEL-HOODSIDE (LH) STY 6 COLIMBIA MTD-777CD30132
...
9
LABEL-MANUAL PTO MTD-777CI00104
...
10
LABEL-REAR FENDER COLUMBIA MTD-777CD30086
...
11
LABEL:RIDER STEERING WHEEL CAP MTD-NA
...
12
LABEL-SAFETY/INST Model 13AP616G597 MTD-977S32546
...
12
LABEL-RIDER SAFETY Model 13AV616G597 MTD-777S32545
...
13
LABEL-CHECK ENG OI MTD-777I22679
...
14
LABEL-RT-99 HTCHPLT MTD-777I20802
...
15
LABEL:RIDER DECK: UNDERCHUTE EXP MTD-777S30296
