Columbia 12AV569Q897 (2010) Self Propelled Walk Behind Mower

Model: 12AV569Q897 (2010)

Back To Assemblies

Save Part Not Listed?
product name

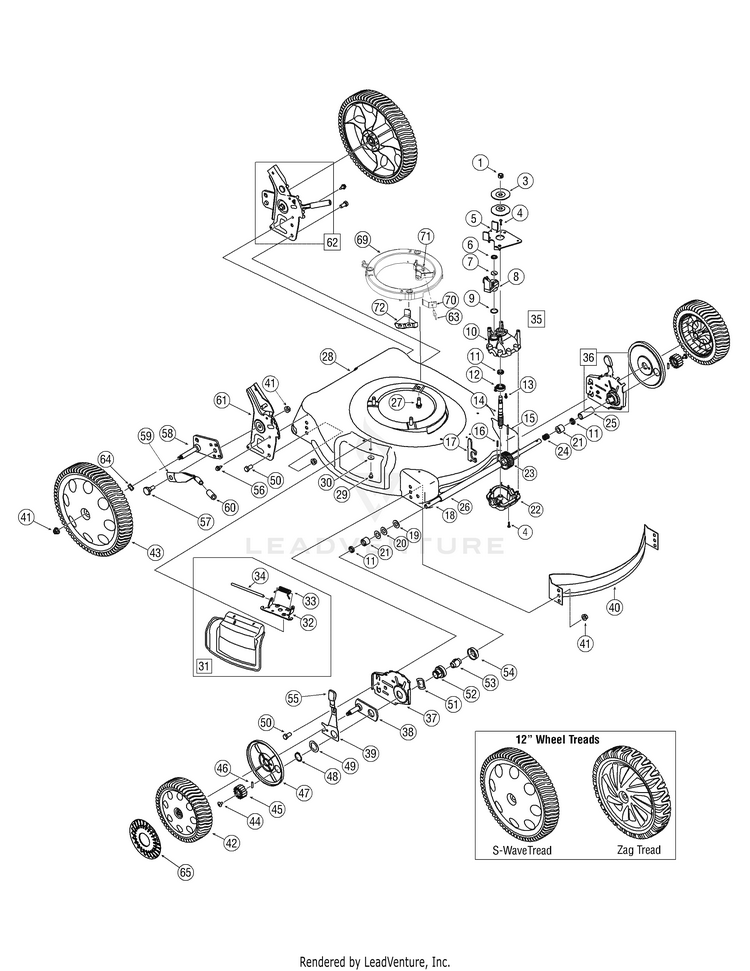

Deck & Drive Assembly

...
...
1
Flanged Lock Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
3
Pulley 2.5 OD Order Ref 35 MTD-NA
...
4
Torx Screw MTD-710-04329
...
5
Transmission Bracket Order Ref 35 MTD-NA
...
6
PUSH NUT NLA MTD-712-0229
...
7
Slotted Washer MTD-736-04178A
...
8
CLUTCH LEVER MTD-731-05187
...
9
O-RING NLA MTD-721-04110
...
10
Upper Housing Order Ref 35 MTD-NA
...
11
Oil Seal MTD-721-04107A
...
12
Ball Bearing MTD-741-04116
...
13
Hex Screw MTD-710-04374
...
14
Pinion Shaft Order Ref 35 MTD-NA
...
15
Dowel Pin Order Ref 35 MTD-NA
...
16
Spirol Pin MTD-715-0129
...
17
Shifter Fork MTD-707-04409B
...
18
Output Shaft Order Ref 35 MTD-NA
...
19
FLAT WASHER .510 x .995 MTD-736-0272
...
20
Flat Washer MTD-736-04224
...
21
BEARING ASSEMBLY NLA MTD-641-00000
...
22
Lower Housing Ass’y Order Ref 35 MTD-NA
...
23
28 Tooth Gear Order Ref 35 MTD-NA
...
24
COMPRESSION SPRING NLA MTD-732-04290
...
25
Sleeve Spacer 1.8" Lg. MTD-750-04405
...
26
SLEEVE SPACER .520IDX9.1LG MTD-750-04404
...
27
Hex Wash TT Sems Scr 3/8-16 x 1.875 MTD-710-1008
...
28
21" DECK (BLACK JACK) MTD-787-01278-0691
...
29
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
30
SPRING WASHER BELL MTD-736-0270
...
31
Complete Mulch Plug MTD-987-02055
...
32
PLATE-ADAPTER MTD-17032A
...
33
Torsion Spring MTD-732-1014C
...
34
Hinge Pin MTD-747-0710A
...
35
Transmission Ass’y Complete MTD-918-04377B
...
36
RH Height Adjustment Assembly MTD-987-02194A
...
36
LH Height Adjustment Assembly MTD-987-02193A
...
37
ADJUSTMENT PLATE (RH) MTD-787-01298A-0637
...
37
ADJUSTMENT PLATE (LH) MTD-787-01299A-0637
...
38
PIVOT ARM ASSEMBLY (RH) MTD-987-02344
...
39
Spring Lever Front RH MTD-732-0706
...
39
Spring Lever Front LH MTD-732-0707
...
40
FRONT BAFFLE MTD-782P5002B
...
41
Hex L-FlangeNut 3/8-16 Gr. F, Nylon MTD-712-04065
...
42
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
43
Wheel Ass'y 12 x 2.125 Gear Zag MTD-734-04093
...
44
Pan Scr. 1/4-20 x .390 MTD-710-04531
...
45
Spur Gear 14T RH MTD-717-1762
...
45
Spur Gear 14T LH MTD-717-1761
...
46
Pin MTD-915-0221
...
47
Wheel Dust Cap MTD-782-7551A
...
48
Snap Ring MTD-716-0102
...
49
Flat Washer 1.5 OD x .03 MTD-736-0474
...
50
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
51
Wave Washer MTD-736-0447
...
52
Bearing Support MTD-987-02347
...
53
Bearing Sleeve MTD-741-0604A
...
54
BEARING RETAINER MTD-732-0708
...
55
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
56
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
57
Shoulder Screw .50 Dia. X .385 MTD-738-04266
...
58
Pivot Arm Assem bly - RH MTD-987-02335
...
58
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
59
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
60
Foam Grip MTD-720-0312
...
61
RH Handle Bracket Furnish ref 62 MTD-NA
...
61
LH Handle Bracket Furnish ref 62 MTD-NA
...
62
LH Handle Bracket Assembly MTD-987-02280A
...
62
RH Handle Bracket Assembly MTD-987-02279A
...
63
Rivet MTD-928-0173
...
64
Spring Washer .50 ID x 1.0 OD x .022 MTD-736-0182
...
65
Hub Cap Grey Radial MTD-731-07001
