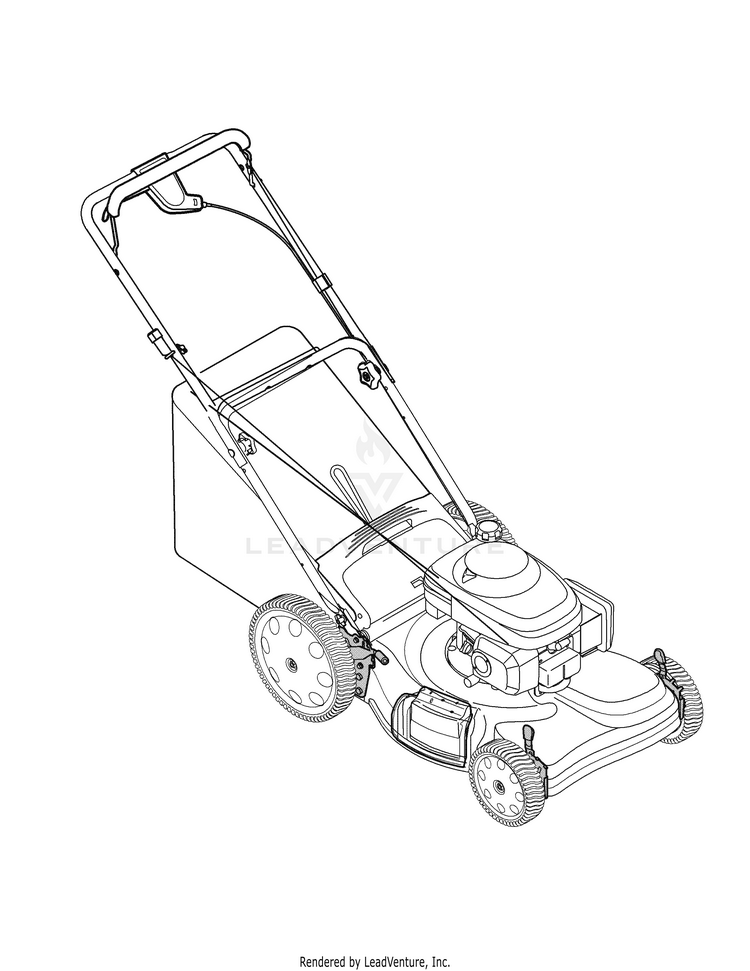

Columbia 12AV569Q597 (2008) Self Propelled Walk Behind Mower

Model: 12AV569Q597 (2008)

Back To Assemblies

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22
...
xx
Air Filter MTD-17211-ZL8-023
...
xx
Control Cable MTD-946-0957
...
xx
Drive Cable MTD-946-04206A
...
xx
Dive Belt MTD-954-0637A
...
xx
Blade Adaptor MTD-748-04082
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheels, Zag (Front) MTD-734-2042A
...
xx
Wheels, S Wave (Front) MTD-734-04018C
...
xx
Wheels, Zag (Rear) MTD-734-04093
...
xx
Wheels, S Wave (Rear) MTD-734-04019
...
xx
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
xx
Hub Cap, Grey MTD-731-0981C
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Key MTD-925-0201
...
xx
Key Switch MTD-925-04347
...
xx
BATTERY REPLACEMENT KIT MTD-753-10804
...
xx
BATTERY CHARGER MTD-725-06121C
