Coast to Coast 135H660F054 (1995) Lawn Tractor

Model: 135H660F054 (1995)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

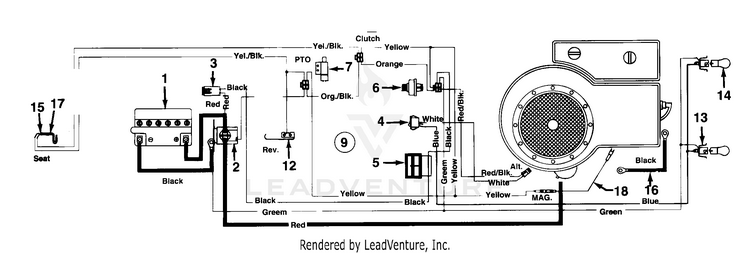

Electrical/Switches

...
...
1
Battery MTD-725-1635
...
2
Solenoid MTD-925-1426A
...
3
Fuse 7.5 Amps MTD-725-1625
...
4
Light Switch Optional MTD-925-0634
...
5
Ammeter Optional MTD-925-0925
...
6
Ignition Switch MTD-925-0267B
...
7
Safety Switch MTD-925-1657A
...
9
Wire Harness w/o Ammeter MTD-629-0201
...
xx
Wire Harness w/Ammeter MTD-629-0203
...
12
Safety Switch (Reverse) MTD-725-1643
...
13
HEADLIGHT SOCKET (1/4 TURN) Used on Styles 0, 5 MTD-925-1649A
...
xx
Headlight Socket (Style 4, 9) Used on Styles 8, 9 MTD-925-1650
...
xx
Socket Used on Styles 1, 3, 7 MTD-925-1651
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch MTD-925-1303
...
16
Ground Wire 7.5" Lg. MTD-725-0980
...
17
Safety Switch (Seat) MTD-725-1439
...
18
Harness Adaptor MTD-629-0207
...
...
...
...
