C950-60470-0 Murray - Craftsman Lawn Tractor (2004)

Model: C950-60470-0
Save
 Don't See Your Part Listed?
product name

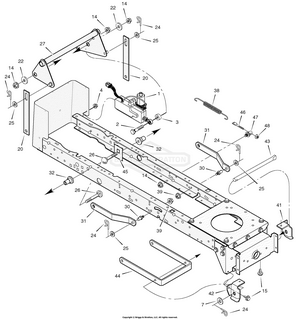

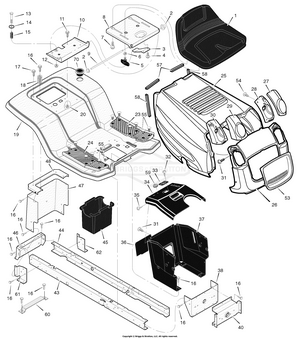

Chassis & Hood

...
...
1
Seat BS-95415
...
2
PUSHNUT, 3/8 BS-703948
...
3
BEARING- LOWER BS-94124
...
4
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
5
BOLT, Wing 5/16-18 x 1/2 BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
BOLT, Shoulder 5/16-18 x 5/8 BS-009X56MA
...
8
Support, Seat BS-094154E201
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E700
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
BOLT, Shoulder 1/4-20 x 5/16 BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
CAPSCREW, 5/16-18 BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
SPRING, Compression BS-164X30MA
...
19
Deck, Seat BS-1001905E201
...
20
NUT, Nylock 5/16-18 BS-15X123MA
...
22
SCREW, Shoulder #10-24 BS-009X47MA
...
23
Mat, Left BS-95408
...
24
Mat, Right BS-95409
...
25
Hood BS-1001537E201
...
26
Grille BS-1001533E201
...
27
Lens, Left BS-1001552
...
28
Housing, Left Headlamp BS-1001550
...
29
Lens, Right BS-1001551
...
30
Housing, Right Headlamp BS-1001549
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238
...
33
BEARING, Steering BS-1001491MA
...
34
Dash BS-1001858E201
...
35
SCREW, Self Tap #8 x 3/8 BS-26X201MA
...
36
Panel, Access BS-1001860E201
...
37
Support, Dash BS-1001876E201
...
38
Bracket, Rear Hanger BS-1001270E701
...
40
Axle, Hanger BS-094007E701
...
43
Frame, Right BS-1001928E701
...
44
Frame, Left BS-1001927E701
...
45
Container, Battery BS-690424
...
46
Plate, Hitch BS-1001002E701
...
47
Plate, Rear BS-1001906E701
...
48
Top, Rear Plate BS-094186E201
...
53
Insert, Grille BS-1001540
...
54
Screw BS-26X259
...
55
FASTENER, Panel BS-0193X1MA
...
57
Trim, Hood (3.75") BS-1001652
...
58
Trim, Hood (6.5") BS-1001653
...
59
Grommet, Parking Brake BS-1001755
...
60
Bracket, Support BS-690482E701
...
61
Bracket, Right Transaxle BS-094184E701
...
62
Bracket, Left Transaxle BS-094185E701
...
70
Holder, Cup BS-1001542
...
––
Lanyard (Hood ) BS-1001953
...
--
Instruction Book BS-F-040772L

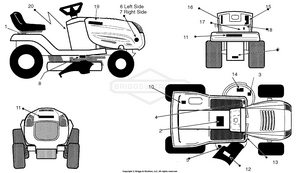

Decals

...
...
1
DEKA (Battery) BS-44X8064
...
2
Warning (Console - Center) BS-44X7774
...
3
NO STEP (Mower Deck – Left Side) BS-44X7140
...
4
Park / Brake BS-44X4331
...
5
Cut Finger (Mower Deck –Right Side) BS-51X897
...
6
20/42 Auto Twin – Left Side BS-48X5537
...
7
20/42 Auto Twin – Right Side BS-48X5538
...
8
Gage Wheel Level BS-48X5496
...
9
Warning Load Limit (Rear) BS-48X5078
...
10
Dump Valve (Seat Deck - Top Left) BS-44X6962MA
...
11
Craftsman Logo BS-48X5213
...
12
Mulch Kit Installed BS-44X4791
...
13
Hydro Drive BS-44X6675
...
14
3–Way BS-48X5494
...
15
Diagnostic Dash BS-290X2251
...
16
20 HP B&S V–Twin (Engine) BS-48X5403
...
17
Ignition / Parking Brake BS-48X5172
...
18
Throttle BS-48X158
...
19
Deck Height Adjust BS-48X5527
...
20
Deck Height Control BS-48X5189
...
21
Craftsman Nameplate BS-48X358
...
22
Fuel Gauge BS-44X6595

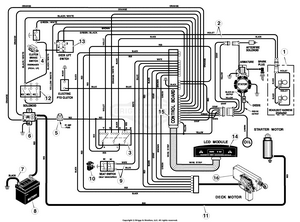

Electrical System

...
...
1
Harness, Light Wire BS-250X92
...
1
Socket, Light BS-1001716
...
1
HHCS, 1/4C X1-1/2 BS-7090639YP
...
2
Harness, Chassis Wire BS-250X134
...
3
Switch, Ignition BS-92556
...
3
Key, Ignition BS-20729
...
3
HLDR, BRUSH BS-91489GS
...
3
PLUG BS-794903
...
4
Switch, Limit BS-94136
...
5
FUSE, 15 Amp BS-302031MA
...
5
Holder, Fuse BS-407078
...
6
Solenoid BS-1001904
...
6
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
6
Locknut BS-15X116
...
7
Cable, Battery Ground BS-024X32MA
...
7
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
8
Battery BS-21075
...
8
BOLT, 1/4-20X0.625 BS-703841
...
8
WINGNUT, 1/4-20 BS-014X79MA
...
9
Harness, Seat Switch Wire BS-250X135
...
10
Switch, Seat Sensor BS-94159
...
11
CABLE, Battery 8GA 18.00L - Red BS-024X31MA
...
12
WASHER BS-691691
...
13
Switch, Lifter BS-1001685
...
14
LCD Module BS-1001902
...
15
Contol Board Module BS-1001903
...
15
Key, English Electrical BS-1001908
...
15
Key, French Electrical BS-1001909
...
16
Lift Assembly, Deck BS-1001901

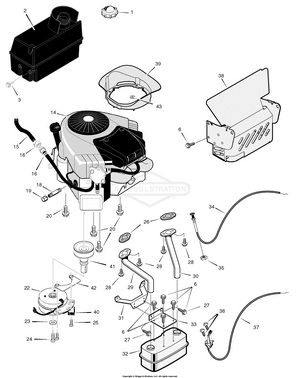

Engine Mount

...
...
1
WASHER (Included with Ref. No. 2) BS-691077
...
2
Tank, Fuel BS-690289
...
3
Screw BS-26X253
...
6
SCREW.25-20 S-T BS-26X263MA
...
15
Line, Fuel (Must cut to length) (Included with Ref. No. 2) BS-7601033
...
16
Clamp, Hose (Included with Ref. No. 2) BS-95197
...
18
SCREW BS-699164
...
19
Cap, Oil Drain BS-021651 Z
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
22
Clutch, Electric BS-690461
...
23
Washer BS-120383
...
24
Bolt BS-428644
...
25
CAPSCREW, 5/16-18 BS-26X249MA
...
26
Gasket, Exhaust BS-711851
...
27
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
28
SCREW, Torx Head 5/16-18 x 5/8 BS-06X103MA
...
29
Tube, Right Exhaust BS-690541
...
30
Tube, Left Exhaust BS-690542
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-93259
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
SCREW, Self Tap #8 x 3/8 BS-26X201MA
...
37
Control, Throttle BS-93165
...
38
Shield, Heat BS-1001456E701
...
39
Plenum BS-1001588
...
40
Guide, Belt BS-690053
...
41
Adapter, Pulley BS-1001667
...
42
Plate, Brake BS-094935E717
...
43
Nut, Push BS-028X44

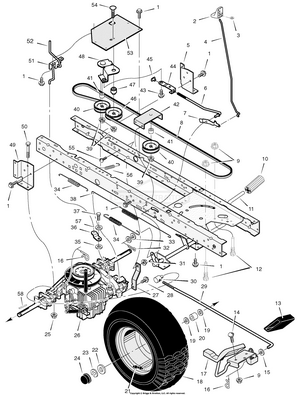

Motion Drive

...
...
1
CAPSCREW, 5/16-18 BS-26X249MA
...
2
Knob, Parking Brake BS-95315
...
3
Nut, Push BS-028X49
...
4
Rod, Parking Brake BS-1001245 Z
...
5
Bracket, Left Transaxle BS-094185E701
...
6
Rod, Clutch BS-1001013 Z
...
7
Latch, Parking Brake BS-094045 Z
...
8
V–Belt, Drive BS-37X106
...
9
Nut, Flange BS-015X79
...
10
Pedal, Brake/Clutch BS-21544
...
11
Assembly, Brake Pedal BS-1001011E700
...
12
Screw, Guide BS-94384
...
13
Pad, Pedal BS-94798
...
14
BOLT BS-703159
...
15
Washer BS-017X57
...
16
PIN, 3/32 X 1.6 BS-703300
...
17
Pedal Assembly, Hydro BS-1001231E701
...
18
Wheel & Tire Assy. – 20" BS-092511-804
...
––
Tire ONLY * BS-407926
...
––
Tube ONLY BS-407049
...
19
WASHER, Flat, 1-1/4 BS-17X160MA
...
20
SPACER BS-690554ZMA
...
21
Stem, Valve BS-24373
...
22
WASHER, Flat 1-3/4 BS-17X195MA
...
23
RING, E .750D .050T BS-0011X3MA
...
24
Cap, Hub BS-94618
...
25
NUT, HEX FLNG,5/16-18 BS-704067
...
27
Strap, Torque BS-1001085E701
...
28
Screw BS-26X216MA
...
29
Rod, Control BS-1001234 Z
...
30
NUT, Adjusting BS-092132ZMA
...
31
NUT, CNTR LCK, 3/8-16 BS-703893
...
32
PIN, COTTER, 3/32X.75 BS-703312
...
33
Washer BS-017X48MA
...
34
SPRING, Extension BS-165X92MA
...
35
Washer BS-17X148MA
...
36
ARM, Disconnect BS-1001086ZMA
...
37
Bolt BS-06X105MA
...
38
Spring, Brake BS-165X150MA
...
39
NUT, CNTR LCK, 3/8-16 BS-703893
...
40
Pulley, Idler BS-690409
...
41
SCREW BS-690369
...
42
Bracket, Idler Assembly BS-1001097E701
...
43
Bolt, Shoulder BS-009X49
...
44
Link, Clutch BS-1001007 Z
...
45
Nut, Tee BS-1001014MA
...
46
Pulley, Idler BS-690410
...
47
Bushing, Pivot BS-1001012MA
...
48
Arm Assembly, Idler BS-1001018 Z
...
49
Bracket, Right Transaxle BS-094184E700
...
50
SCREW BS-703868
...
51
Bracket, Disconnect BS-1001214 Z
...
52
Rod, Disconnect BS-1001215ZMA
...
53
BRKT, IDLER PIVOT BS-726355BMYP
...
54
Bolt, Carriage BS-002X92MA
...
55
Bolt, Carriage BS-002X78MA
...
56
SPRING, CLUTCH BS-165X155MA
...
57
WASHER, Flat, 3/4 BS-017X38MA
...
58
Key, Square 3/16" BS-21553

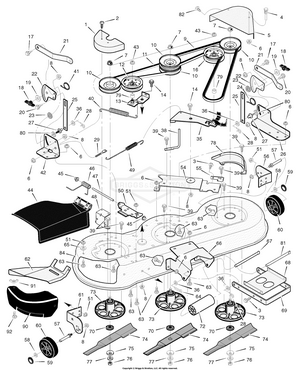

Mower Housing

...
...
1
COVER, PULLEY, RH BS-7300857BMYP
...
2
Screw BS-26X250
...
3
CAPSCREW, 5/16-18 BS-26X249MA
...
4
Guide, Belt BS-91754
...
5
Cover, Left Pulley BS-094645E701
...
6
Nut, Hex BS-015X79
...
7
Nut, Flange BS-15X140
...
8
NUT, CNTR LCK, 3/8-16 BS-703893
...
9
Belt, Primary BS-037X89
...
10
SCREW BS-690346
...
11
Belt, Secondary BS-037X66
...
12
Pulley, Idler BS-690549
...
13
Arm, Idler BS-094639E701
...
14
Bolt, Shoulder BS-009X39
...
16
Pulley, Idler BS-690387
...
17
BOLT, Shoulder 3/8-16 x 1 BS-009X52MA
...
18
Knob BS-94068
...
19
WASHER,FLAT .33 1. 16 BS-017X45MA
...
20
BOLT-SHD.38-16X.499D BS-009X51MA
...
21
Bracket, Rear Suspension BS-094055E701
...
22
Plate, Suspension BS-094128E700
...
23
SCREW BS-690326
...
24
SPRING, Left Torsion BS-166X43MA
...
25
Link, Lift BS-690212E701
...
26
Bracket, Left Lift BS-094600E700
...
27
Pin, Hanger BS-95194
...
28
PIN, 3/32 X 1.6 BS-703300
...
29
Rod, Adjuster BS-1001694 Z
...
35
Idler, Arm BS-690579E701
...
36
Washer BS-17X103MA
...
38
Guide, Belt BS-092116 Z
...
39
SCREW-HEX WSHR HD TAP BS-2828635SM
...
40
Spring, Extension BS-165X79MA
...
41
SPRING, Right Torsion BS-166X42MA
...
42
Bracket, Suspension BS-094598E701
...
43
NUT, CNTR LCK, 3/8-16 BS-703893
...
44
Deflector, Chute BS-92100
...
45
PUSHNUT, 3/8 BS-703948
...
46
Spring BS-166X34MA
...
47
Rod, Deflector BS-092159ZMA
...
48
Bracket, Cover BS-092140E701
...
49
Spring, Extension BS-165X131
...
50
Bracket, Hinge BS-092104E701
...
51
NUT, HEX FLNG,5/16-18 BS-704067
...
54
Plate, Brake Arm BS-094596E701
...
55
Bracket, Brake Plate BS-094602E701
...
56
Bracket, Left Gauge Wheel BS-094919E700
...
57
Axle BS-94025
...
58
WASHER, Flat, 13/16 BS-017X91MA
...
59
Ring, Locking BS-031X11MA
...
60
Wheel, Gage BS-092683MA
...
61
Bracket, Right Gauge Wheel BS-094918E701MA
...
62
Deflector, Inside BS-092103E701
...
63
BOLT BS-703159
...
64
PIN, Cotter 1/8" x 1-1/4" BS-030X49MA
...
65
Washer BS-017X57
...
66
Bracket, Front Deck BS-094997E701
...
67
Rod, Hanger BS-94996
...
68
Stiffener BS-094604E701
...
69
Bracket, Suspension BS-690539E701
...
70
Adapter, Blade BS-690411
...
72
Roller BS-1001252MA
...
73
JACKSHAFT HSNG ASSY BS-1001200MA
...
74
Blade BS-056631E701
...
75
Washer, Belleville BS-17X166MA
...
76
Nut, Hex BS-15X100MA
...
77
Washer BS-17X165MA
...
78
Bracket, Pulley Cover BS-690221E701
...
79
SCREW BS-690369
...
80
WASHER, Star, 1/2 BS-019X35MA
...
81
Rod, Hanger BS-94996
...
82
SCREW, 5/16-18 x 1/2 BS-26X277MA
...
84
Housing, Mower BS-1001589E701
...
90
SCREW BS-691143
...
91
NUT BS-703141
...
92
Bolt, Carriage BS-002X64

Mower Housing Suspension

...
...
1
Assembly, Deck Lift BS-1001901
...
2
Bolt BS-01X111MA
...
3
Spacer BS-1001907Z
...
4
NUT .25-20 FLANGELOCK BS-015X89MA
...
7
Washer BS-17X103MA
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
15
CAPSCREW, 5/16-18 BS-26X249MA
...
20
Link, Lift BS-690212E701
...
22
Washer BS-17X168ZMA
...
24
PIN, 3/32 X 1.6 BS-703300
...
25
WASHER, Flat, 13/16 BS-017X91MA
...
26
Bolt, Carriage BS-002X85
...
27
Lever Assembly, Lift BS-1001111E701MA
...
30
Pin BS-94067
...
31
Bracket, Rear Suspension BS-094055E701
...
32
Spacer, Lifter BS-690151MA
...
38
Spring BS-165X133
...
39
NUT, 3/8-16 BS-703333
...
41
Hanger, Left Deck BS-094027E701
...
42
Hanger, Right Deck BS-094026E701
...
43
Rod, Hanger BS-094158ZMA
...
44
Bracket, Suspension BS-690539E701
...
45
Plate, Stiffening BS-1001098E700
...
46
Stud, Spring Mount BS-094042ZMA
...
47
Stud, Swivel BS-690182
...
48
NUT, CNTR LCK, 3/8-16 BS-703893

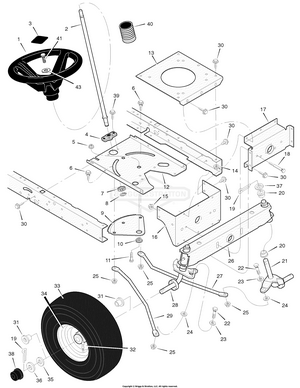

Steering

...
...
1
Wheel, Steering BS-95185
...
2
Post, Steering BS-690625
...
3
Cap, Steering Wheel BS-711326
...
4
Bearing BS-94124
...
5
Nut, Flange BS-15X111
...
6
Bolt, Shoulder BS-009X57
...
7
Gear, Pinion BS-690183
...
8
SNAP RING, 1/2 BS-011X25MA
...
9
SCREW BS-692523
...
10
Bearing BS-94123
...
11
Bolt BS-001X84
...
12
Plate, Steering BS-1001121E701
...
13
Plate, Engine BS-094006E701
...
14
NUT, HEX FLNG,5/16-18 BS-704067
...
15
Nut, Flange BS-15X118MA
...
16
Bracket, Hanger BS-1001270E701
...
17
Axle, Hanger BS-094007E701
...
18
Bolt, Hex BS-01X146MA
...
19
PIN, Cotter 1/8" x 1-1/4" BS-030X49MA
...
20
Bearing BS-690150MA
...
21
Spindle Assembly, Left BS-094576E701
...
22
Bolt BS-01X111MA
...
23
Washer BS-17X104
...
24
WASHER, FLAT 5/16 BS-704015
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
GT AXLE - CAST IRON BS-690232E701MA
...
27
Drag Link, Left BS-095329E701
...
28
Spindle Assembly, Right BS-094575E701
...
29
Drag Link, Right BS-095328E701
...
30
CAPSCREW, 5/16-18 BS-26X249MA
...
31
MANUAL-OPERATOR BS-91334GS
...
32
Stem, Valve BS-24373
...
33
DECAL, WARNING, DECK BS-7072921YP
...
––
Tube BS-407924
...
34
Wheel and Tire Assembly BS-094583-804
...
35
WASHER, Flat 1-3/4 BS-17X195MA
...
36
WASHER, Flat, 3/4 BS-17X192MA
...
37
Washer BS-17X113
...
38
Hub Cap BS-94618
...
39
SCREW, 5/16-18 BS-26X267MA
...
40
CNTRL, SPEED, MOTOR, STEPPER BS-92059GS
...
41
SCREW, Thread Forming, 1/4-20 x 1 BS-0025X3MA
...
43
WASHER, Flat BS-17X146MA
...
...
...
...
Processing
