C950-52735-0 Murray - Craftsman Single Stage Snow Thrower (2007)

Model: C950-52735-0

Back To Assemblies

Save Part Not Listed?
product name

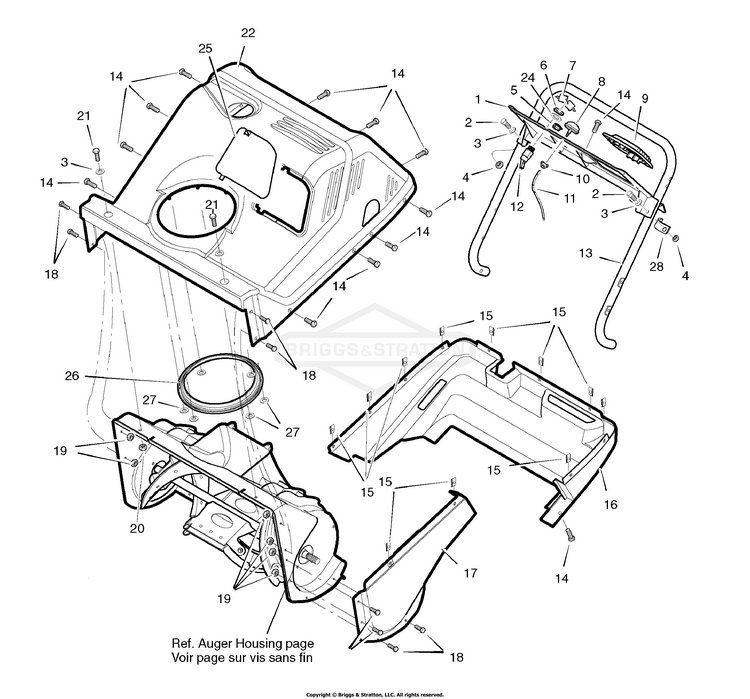

Top Cover

...
...
1
Panel, Control BS-1501862MA
...
2
Screw 1/4-20 x 1.62 BS-1741503MA
...
3
WASHER BS-703332
...
4
NUT, 1/4-20 BS-703251
...
5
Bushing, Chute Crank BS-1501874MA
...
6
Nut, 5/8-32 BS-300193MA
...
7
SET, Key BS-691959
...
8
PRIMER-CARBURETOR BS-394281S
...
9
Panel, Cover Access BS-1501878MA
...
10
NUT, 1/4-20 REGHEXKEP BS-271172MA
...
11
Hose, Primer 9.5" BS-335507MA
...
12
Switch, Ignition BS-56992MA
...
13
Handle, Lower BS-1501860E701MA
...
14
SCREW, 1/4-14X .75 SL BS-313685MA
...
15
J-Nut 1/4-10 BS-578109MA
...
16
Cover, Bottom BS-1501867MA
...
17
Cover, Belt BS-1502026MA
...
18
Screw 10-24 x .5 BS-12342MA
...
19
NUT#10-24 MCLEANLOCK BS-015X81MA
...
20
NUT,25-20 HEX FLG CTR BS-15X143MA
...
21
SCREW.25-20X0.62 HHC BS-579052MA
...
22
Cover, Top BS-1501866MA
...
24
Washer BS-313683MA
...
25
Cover, Oil Access BS-1501868MA
...
26
Gasket, Chute Ring BS-1501995MA
...
27
Push Nut BS-028X85MA
...
28
CLIP,CABLE.38 C951PC BS-583435MA
