C950-52435-3 Murray - Craftsman Single Stage Snow Thrower (2006)

Model: C950-52435-3

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

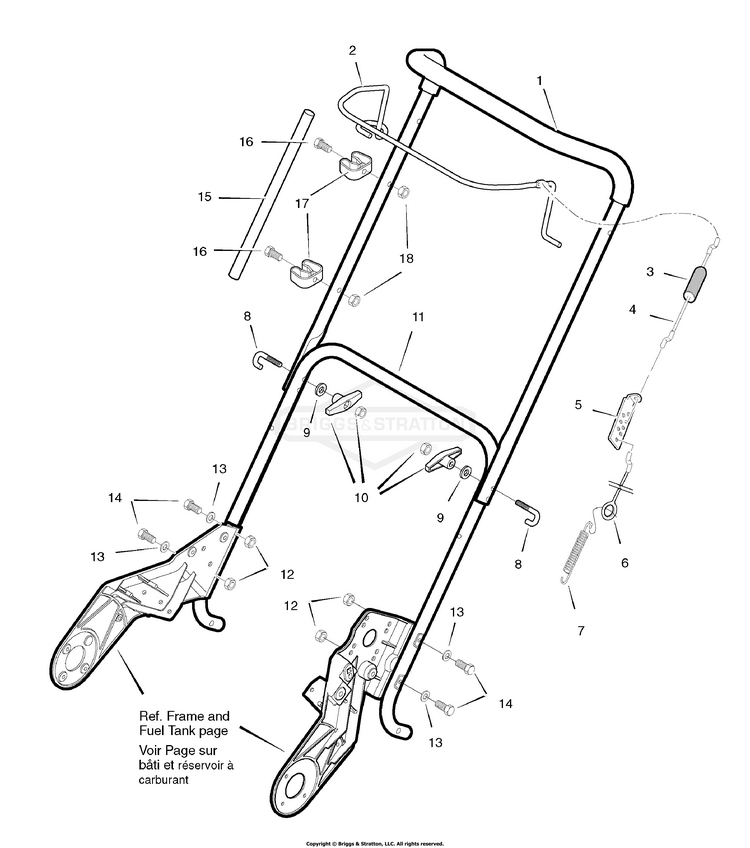

Handle Assembly

...
...
1
Handle, Upper (Foam) BS-1502149E701MA
...
2
Control, Bail BS-1501861E701MA
...
3
Boot, Clutch Spring BS-308146MA
...
4
Cable, Upper Control BS-1502042MA
...
5
BRACKET, CABLE ADJ BL BS-313441MA
...
6
Cable, Lower Control BS-313448MA
...
7
SPRING,EXT.75 OD X.06 BS-313471MA
...
8
U-Bolt BS-1501877MA
...
9
WASHER, FORM .344 ID BS-311936MA
...
10
Knob, Wing BS-1501260MA
...
11
Handle, Lower BS-1501860E701MA
...
12
NUT, 1/4-20 BS-703251
...
13
WASHER BS-703332
...
14
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
15
Tool, Clean-out BS-304361MA
...
16
Screw BS-414291MA
...
17
CLIP,RETAINER YZ BS-1501672MA
...
18
Nut BS-997319MA
