C950-52430-0 Murray - Dual Stage Snow Thrower (2004)

Model: C950-52430-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

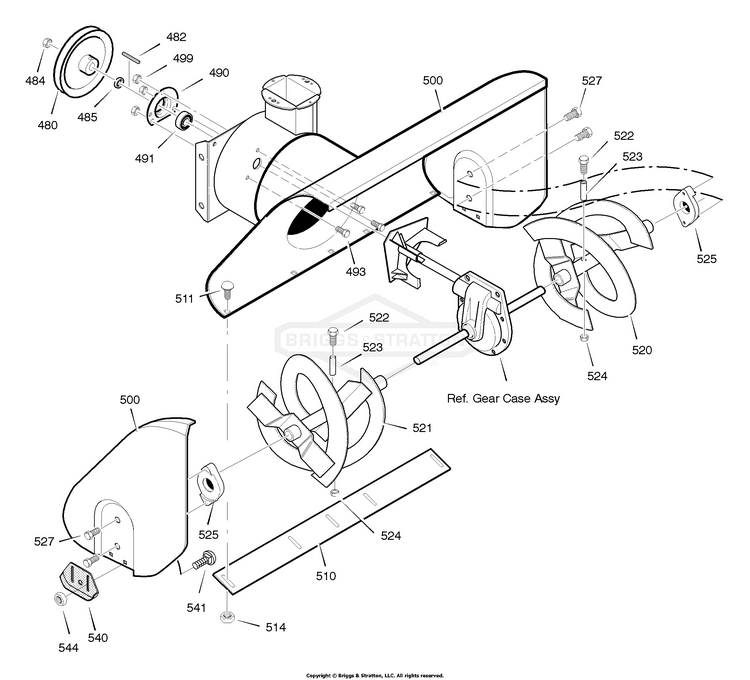

Auger Housing

...
...
480
PULLEY, 4L 8.40 OD. BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
484
NUT.50-20 HEX FLG SER BS-15X112MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
BOLT, HEX 5/16-18X .50 BS-001X92MA
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
HOUSING, ASSY BS-1501132E737MA
...
510
BLADE, SCRAPER 27 H1 BS-1740949BMYP
...
511
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
514
NUT, 5/16-18 BS-710026
...
520
AUGER, LEFT BS-1740736AYP
...
521
AUGER, RIGHT BS-1740737AYP
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-73826
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
527
SCREW, 5/16-18 X .75 BS-703228
...
540
SKID,HGT ADJ S2 HT BS-309016E701MA
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 BS-710026
...
--
KIT,SHEAR BOLT.25-20X BS-1501216MA
...
--
WRENCH BS-680230 Z
