C950-52430-0 Murray - Dual Stage Snow Thrower (2004)

Model: C950-52430-0

Back To Assemblies

Save Part Not Listed?
product name

Headlight

...
...
620
HOUSING, HEADLIGHT UPPER BS-583490MA
...
621
HEADLIGHT ASSEMBLY * BS-762343MA
...
622
HOUSING, HEADLIGHT LOWER BS-1501514MA
...
623
SCREW, #8X1.75 BS-307781MA
...
624
HARNESS,LIGHT HAL P4P BS-1501455MA
...
625
BRACKET, HEADLIGHT BS-4029 YZ
...
626
BOLT, CARRIAGE - 5/16-18X2.00 BS-002X88MA
...
627
WASHER, SADDLE BS-580527MA
...
628
WASHER, EXLK .32X.60X.040 BS-71061
...
629
M-BAG,2LBG.38 K25 N BS-1501670MA
...
630
HN, 5/16C GR5 YZ BS-7091511SM
...
631
SCREW, 5/16-18 x 2.00 BS-235MA
...
632
M-BAG,2LBG.38 K25 N BS-1501670MA
...
633
HN, 5/16C GR5 YZ BS-7091511SM
...
634
TIE, CABLE BS-032618MA

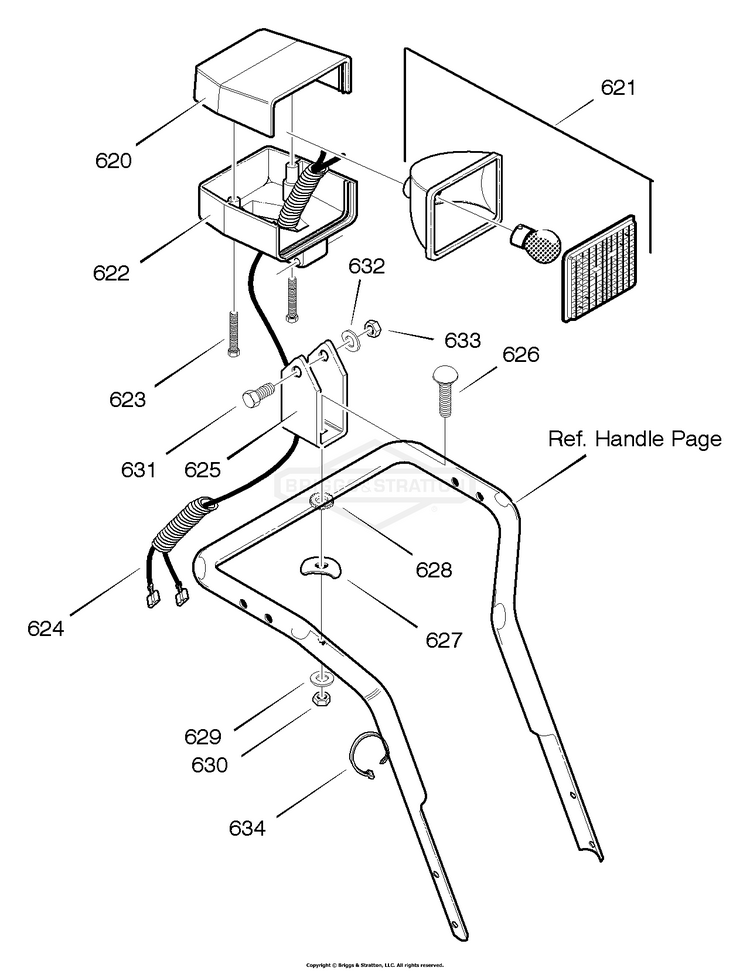

Schematic Image Zoomed
