C950-52420-0 Murray - Dual Stage Snow Thrower (2004)

Model: C950-52420-0

Back To Assemblies

Save Part Not Listed?
product name

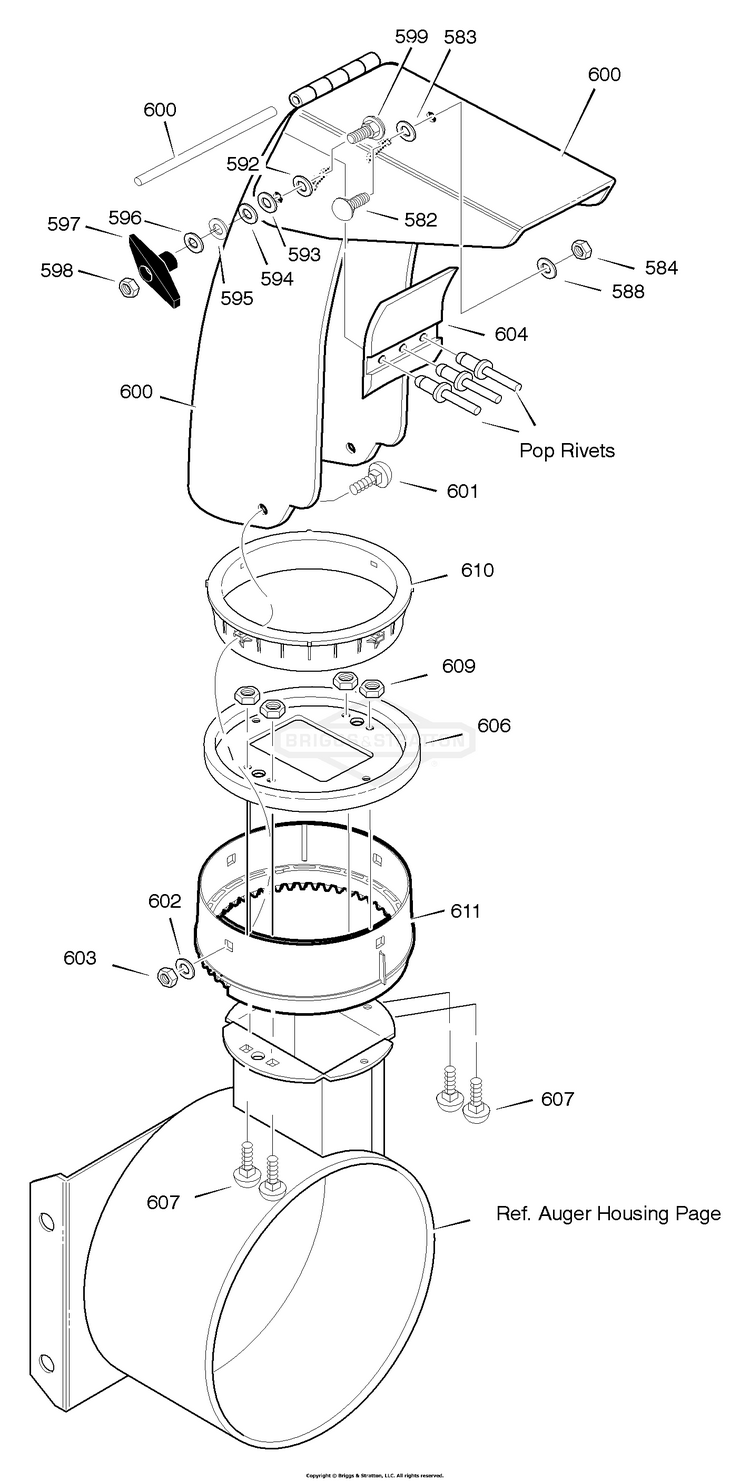

Discharge Chute

...
...
582
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
583
WASHER, PLASTIC BS-12021MA
...
584
NUT, HEX, 5/16-18 BS-703902
...
588
WASHER, PLASTIC .315X BS-6711MA
...
593
WASHER, PLASTIC .315X BS-6711MA
...
594
WASHER BS-703350
...
595
M-BAG,2LBG.38 K25 N BS-1501670MA
...
596
WASHER BS-703350
...
597
KNOB, WING 3.00 BS-1501260MA
...
598
HN, 5/16C GR5 YZ BS-7091511SM
...
599
BOLT, 5/16-18X1.50 BS-704210
...
600
CHUTE ASSEMBLY BS-1502118E701MA
...
601
BOLT, 5/16-18 X1.00 BS-02X100
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
604
FLAP,CHUTE INSERT C2 BS-760268MA
...
606
CHUTE COLLAR BS-1501932YZMA
...
607
BOLT, 1/4-20 X 3/4 BS-703440
...
609
NUT, 1/4-20, NYLOCK BS-703232
...
610
RETAINER RING INNER BS-337227MA
...
611
RING,OUTER CHUTE BS-1501282MA
