C950-52419-0 Murray - Dual Stage Snow Thrower (2004)

Model: C950-52419-0

Back To Assemblies

Save Part Not Listed?
product name

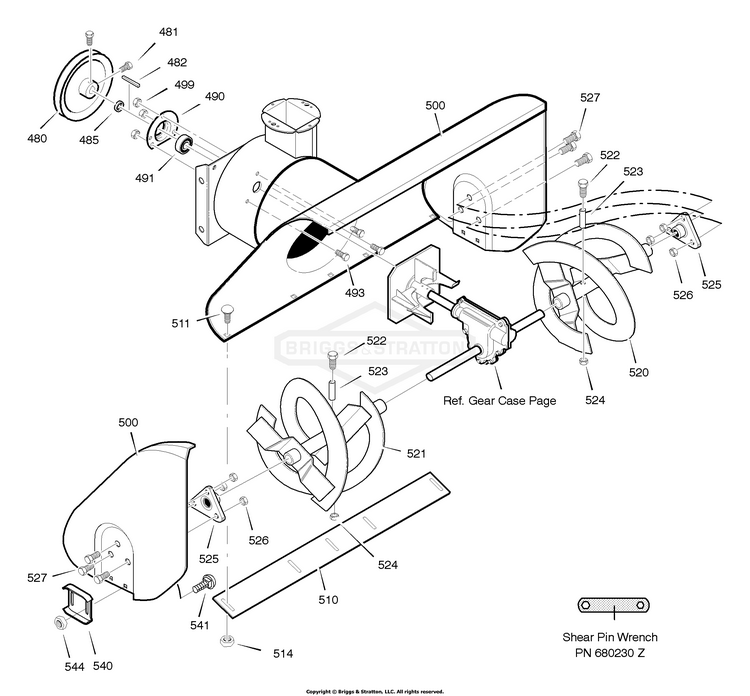

Auger Housing

...
...
480
PULLEY,V4L 6.12X.67 BS-762146MA
...
481
SCREW, 5/16-18X.63 HH BS-577400MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
BOLT, HEX 5/16-18X .50 BS-001X92MA
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
HOUSING, ASSY BS-1501118E549
...
510
BLADE, SCRAPER 24 BS-1740909BMYP
...
511
BOLT,1/4-20X.75 BS-703101
...
514
NUT, 1/4-20, GR5 BS-703233
...
520
AUGER, ASSY, LH BS-1501209E701MA
...
521
AUGER, 24 A2 CF RH BS-1741108HMA
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-73826
...
525
BEARING AUGER BLACK BS-9517MA
...
526
NUT, Hex Flange, Top Lock, 5/16-18 BS-703119
...
527
SCREW, 5/16-18 BS-703354
...
540
SKID, HEIGHT ADJUST BS-301380E701
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 BS-710026
...
--
KIT,SHEAR BOLT.25-20X BS-1501216MA
...
--
SHEAR PIN WRENCH BS-680230 Z
