C950-52405-0 Murray - Dual Stage Snow Thrower (2004)

Model: C950-52405-0

Back To Assemblies

Save Part Not Listed?
product name

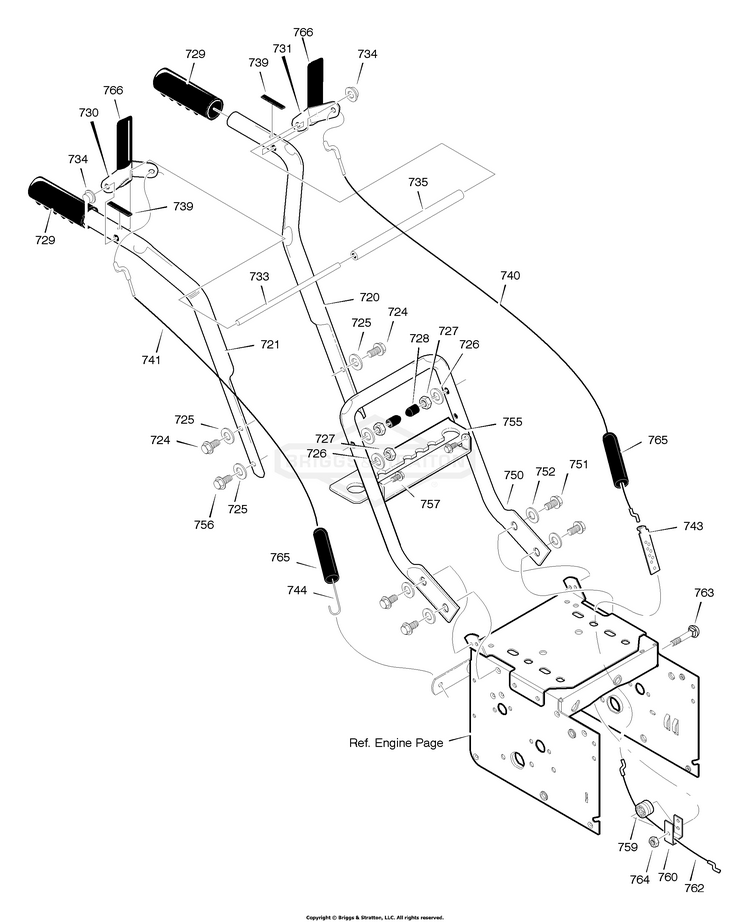

Handle Assembly

...
...
720
HANDLE, UPPER LH BS-337056E701
...
721
HANDLE, UPPER RH BS-337057E701
...
724
CAPSCREW,5/16-18X2.75 BS-703869
...
725
WASHER BS-703350
...
726
M-BAG,2LBG.38 K25 N BS-1501670MA
...
727
HN, 5/16C GR5 YZ BS-7091511SM
...
728
STOP, RED PLASTIC BS-11261MA
...
729
GRIP-HANDLE FINGER BS-337399MA
...
730
LEVER ASSY, RH BS-1740700AYP
...
731
LEVER ASSY, LH BS-1740699AYP
...
733
ROD,PIVOT CTRL BS-337381MA
...
734
PUSHNUT, CAP, 1/4 BS-704005
...
735
SPACER,HANDLE BS-337373MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE,FR-DR P1,P2,P3, BS-1501123MA
...
741
CABLE, AUGER CLUTCH BS-761872MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
750
HANDLE, LOWER BS-1740701ASM
...
751
SCREW, 5/16-18 X .75 BS-703228
...
752
M-BAG,2LBG.38 K25 N BS-1501670MA
...
755
BRKT,GEAR SELECT P123 BS-337407E701MA
...
756
SCREW, 5/16-18 x 2.00 BS-6751
...
757
SCREW, 1/4-20X0.625 BS-703054
...
759
SPOOL-CABLE, AUGRT CLUTCH BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
...
763
BOLT, 1/4-20 BS-5025010X12SM
...
764
NUT, 1/4-20, NYLOCK BS-703232
...
765
BOOT, CLUTCH SPRING BS-308146MA
...
766
GRIP BS-337380MA
