C950-52234-2 Murray - Single Stage Snow Thrower (2004)

Model: C950-52234-2

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

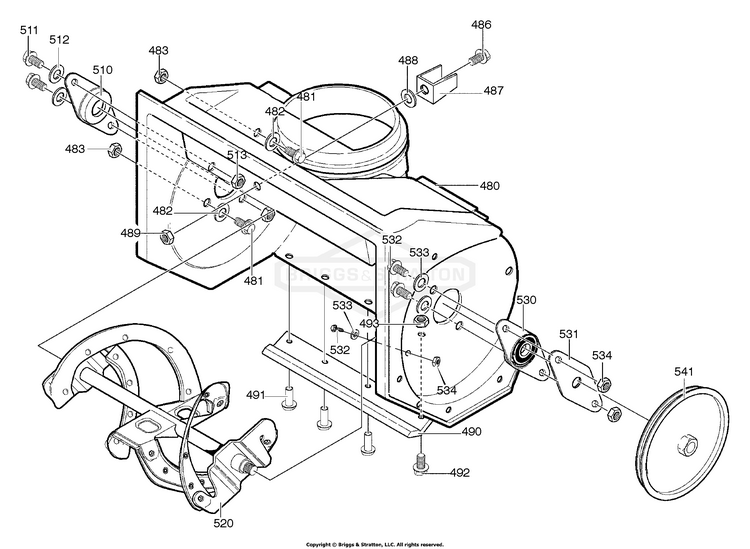

Auger Housing

...
...
480
HOUSING, ASSY BS-330312MA
...
481
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
482
WASHER BS-703332
...
483
NUT,25-20 HEX FLG CTR BS-15X143MA
...
486
SCREW.25-20X0.62 HHC BS-579052MA
...
487
BRACKET, STOP BS-331126MA
...
488
WASHER, FLAT BS-331211MA
...
489
NUT, 1/4-20 BS-780029
...
490
BLADE, SCRAPER BS-334031MA
...
492
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
493
NUT,25-20 HEX FLG CTR BS-15X143MA
...
510
BRNG, FLNG BS-577023MA
...
511
SCREW, 1/4-20 X 1.00 BS-710263MA
...
512
WASHER BS-703332
...
513
NUT,25-20 HEX FLG CTR BS-15X143MA
...
520
AUGER, ASSY BS-1501926MA
...
530
PLATE&BEARING ASY BS-583459MA
...
531
PLATE, RETAINER BS-334287MA
...
532
SCREW.25-20X0.62 HHC BS-579052MA
...
533
WASHER BS-703332
...
534
NUT, 1/4-20 REGHEXCTRLK BS-73826
...
541
PULLEY, V3L 6.00 BS-338965MA
