C950-52234-2 Murray - Single Stage Snow Thrower (2004)

Model: C950-52234-2

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

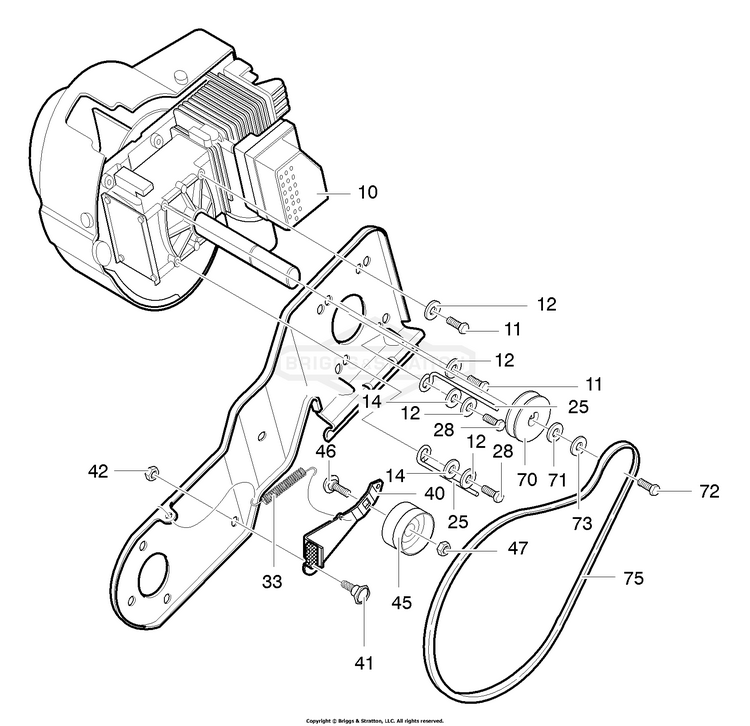

Engine

...
...
11
SCREW, 5/16-18 x 0.75 BS-313676
...
12
M-BAG,2LBG.38 K25 N BS-1501670MA
...
14
WASHER BS-703350
...
25
BELT GUIDE BS-313440MA
...
28
SCREW, 5/16-18 x 1.00 BS-710312
...
33
SPRING, IDLER BRAKE BS-339017MA
...
40
IDLER ARM BS-1501013MA
...
41
BOLT-SHD.500X.177 .31 BS-333594MA
...
42
IDLER SUPT ASSY 22SD BS-1101253MA
...
45
PULLEY, IDLER BS-48924MA
...
46
BOLT BS-45892MA
...
47
NUT, HEX, 3/8-16 BS-703996
...
70
PULLEY BS-338849MA
...
71
WASHER BS-25840
...
72
SCREW, 5/16-24 x .75 BS-181595
...
73
M-BAG,2LBG.38 K25 N BS-1501670MA
...
75
BELT BS-37X132
...
--
BOOK, INSTRUCTION BS-F-041033C
