C950-52234-2 Murray - Single Stage Snow Thrower (2004)

Model: C950-52234-2

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

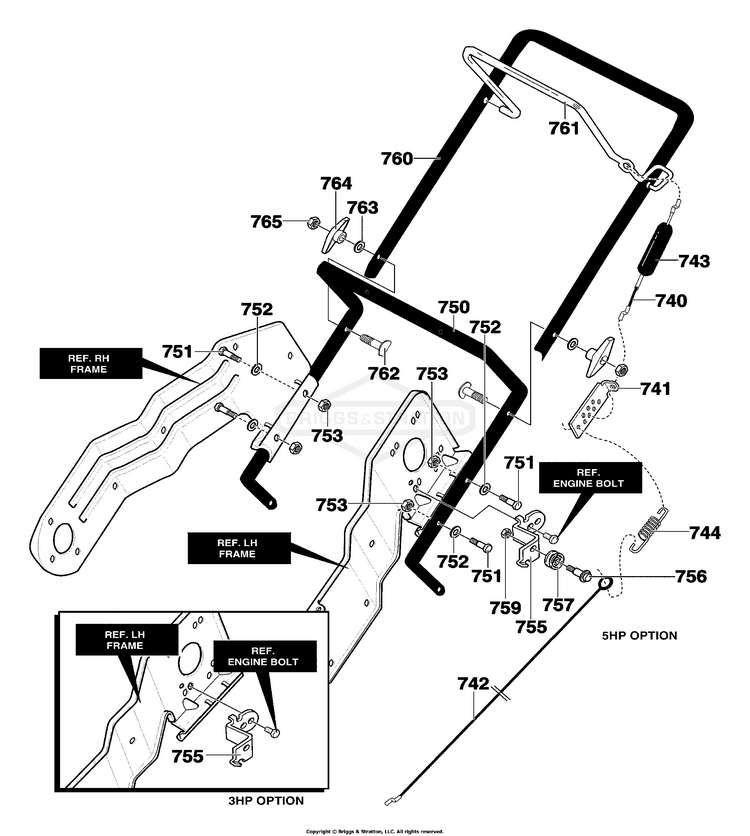

Handle Assembly

...
...
740
CABLE, UPPER BS-760774MA
...
741
BRACKET, CABLE ADJ BL BS-313441MA
...
742
CABLE LOWER CONTROL BS-760773MA
...
743
BOOT, CLUTCH SPRING BS-308146MA
...
744
SPRING,EXT.75 OD X.06 BS-313471MA
...
750
HANDLE LOWER BS-313487E701
...
751
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
752
WASHER BS-703332
...
753
NUT, 1/4-20 BS-73826
...
755
BRACKET, CABLE BS-761486E701
...
756
BOLT BS-712234MA
...
757
PULLEY BS-39298
...
759
NUT,25-20 HEX FLG CTR BS-15X143MA
...
760
HANDLE, UPPER BS-313489E701MA
...
761
BAIL, CONTROL BS-1742110HYP
...
762
BOLT, 5/16-18X2.OO CU BS-337584MA
...
763
WASHER, FORM .344 ID BS-311936MA
...
764
KNOB, WING 3.00 BS-1501260MA
...
765
HN, 5/16C GR5 YZ BS-7091511SM
