C950-52121-2 Murray - Single Stage Snow Thrower (2002)

Model: C950-52121-2

Back To Assemblies

Save Part Not Listed?
product name

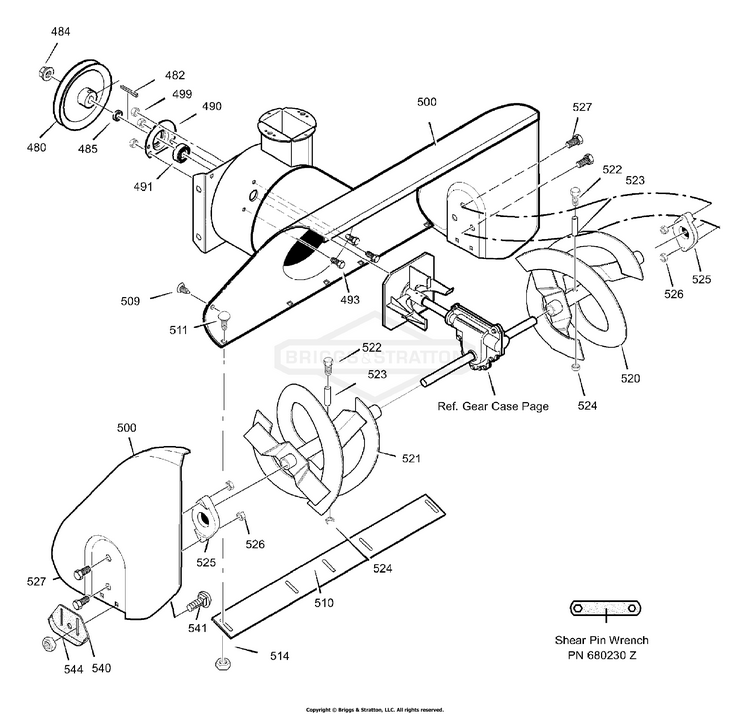

Auger Housing

...
...
480
PULLEY, 4L 8.40 OD. BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
484
NUT.50-20 HEX FLG SER BS-15X112MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL BS-043846
...
493
BOLT, HEX 5/16-18X .50 BS-001X92MA
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
HOUSING, ASSY BS-1501133E549
...
509
FASTENER, RATCHET BS-760040MA
...
510
BLADE, SCRAPER, 29" H BS-1738334BMYP
...
511
BOLT,1/4-20X.75 BS-703101
...
514
NUT, 1/4-20, GR5 BS-703233
...
520
AUGER, 29, Left BS-1740738AYP
...
521
AUGER, ASSY, RH BS-760600E701MA
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20, NYLOCK BS-703232
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
526
NUT, Hex Flange, Top Lock, 5/16-18 BS-703119
...
527
SCREW, 5/16-18 x 0.75 BS-70984
...
540
SKID,HGT ADJ S2 HT BS-309016E701MA
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 BS-710026
