C950-52121-2 Murray - Single Stage Snow Thrower (2002)

Model: C950-52121-2

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

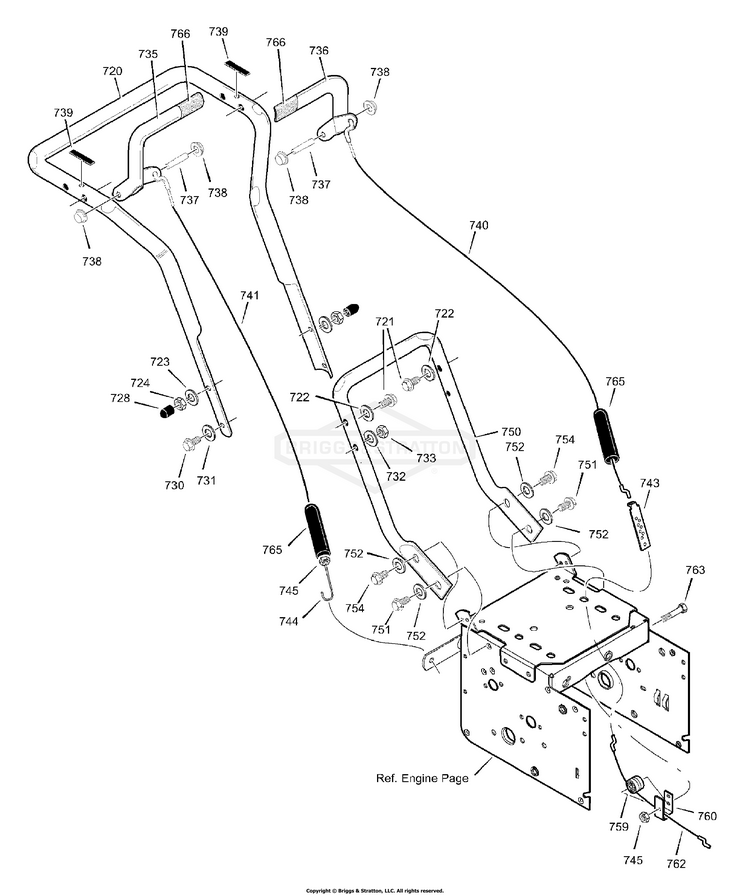

Handle Assembly

...
...
720
HANDLE, UPPER BS-310614E701MA
...
721
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
722
WASHER, FLAT BS-71072
...
723
WASHER BS-71062
...
724
NUT, 3/8-16 BS-71044
...
728
STOP,PLASTIC.375 BS-7289MA
...
730
SCREW, 3/8-16 X 2 BS-71007
...
731
WASHER, FLAT BS-71072
...
732
WASHER BS-71062
...
733
NUT, 3/8-16 BS-71044
...
735
HANDLE, RIGHT BS-5146E701
...
736
HANDLE, LEFT BS-5142E701
...
737
PIN, PIVOT CLUTCH BS-760074MA
...
738
NUT, PUSH ON CAP .312 BS-3535MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE,FR-DR P1,P2,P3, BS-1501123MA
...
741
CABLE, AUGER CLUTCH BS-761872MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
750
HANDLE, LOWER BS-1740626BMYP
...
751
SCREW, TAP 5/16-18 X .75 BS-70984
...
752
WASHER, SPTLK BS-071060
...
754
SCREW, TAP 5/16-18 X .75 BS-70984
...
759
SPOOL-CABLE, AUGRT CLUTCH BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE 12" BS-1501122MA
...
763
BOLT, HEX 1/4-20 X 1.5 BS-1798
...
765
BOOT, CLUTCH SPRING BS-308146MA
...
766
GRIP BS-333928MA
