Brute CL25PS 41AJPS-C767 41AJPS-C767 CL25PS Attachment

Model: CL25PS 41AJPS-C767 41AJPS-C767 CL25PS

Save
 Part Not Listed?Part Not Listed?
product name

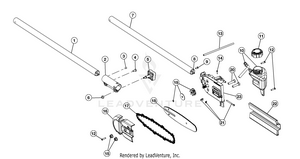

General Assembly

...
...
1
Extension Boom MTD-753-04352
...
2
Split Boom Coupler (Incl. 3-6) MTD-753-1190
...
3
Screw MTD-791-182057
...
4
Bolt MTD-791-181617
...
5
CLICK LINK CLAMP MTD-697-00661-9
...
6
Knob Retaining Nut MTD-712-04018A
...
7
Drive Shaft Housing (Incl. 8) MTD-753-05724
...
8
Flexible Drive Shaft MTD-791-181166
...
9
Screw MTD-710-0599
...
10
Oil Tank Assembly MTD-753-05586
...
11
Fuel Cap Assembly MTD-753-05587
...
12
Screw MTD-791-181345
...
13
Oil Line MTD-753-05588
...
14
Screw MTD-710-04696
...
15
Nut MTD-712-04063
...
16
Chain Guard MTD-753-05765
...
17
Chain MTD-753-05592
...
18
Bar MTD-753-05594
...
19
Sprocket Assembly MTD-753-05595
...
20
Bolt MTD-710-0528
...
21
Chain Tension Hardware Assembly MTD-753-05597
...
22
Chain Cover MTD-731-05906
...
23
Gearbox Assembly (Incl. 14 & 19) MTD-753-05599
...
xx
Hanger (Not shown) (Optional) MTD-731-08926
...
...
...
