Briggs and Stratton 61G877-0017-J1

Model: 61G877-0017-J1

Back To Assemblies

Save Part Not Listed?
product name

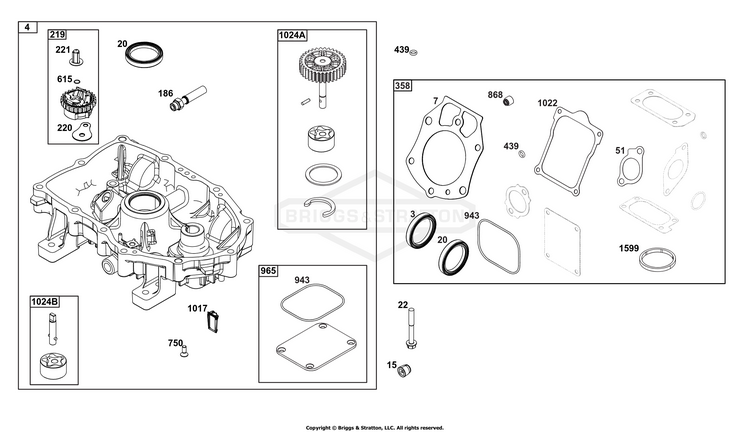

Crankcase Cover/Sump Group

...
...
4
SUMP, Engine BS-84011162
...
15
PLUG, Oil Drain BS-691680
...
20
SEAL, Oil (PTO Side) BS-841596
...
22
SCREW (Crankcase Cover/Sump) BS-690676
...
186
CONNECTOR, Hose BS-847344
...
219
GEAR, Governor BS-809426
...
220
WASHER BS-841608
...
221
CUP, Governor BS-841026
...
615
RETAINER, Governor Shaft BS-698290
