Briggs and Stratton 61G877-0017-J1

Model: 61G877-0017-J1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

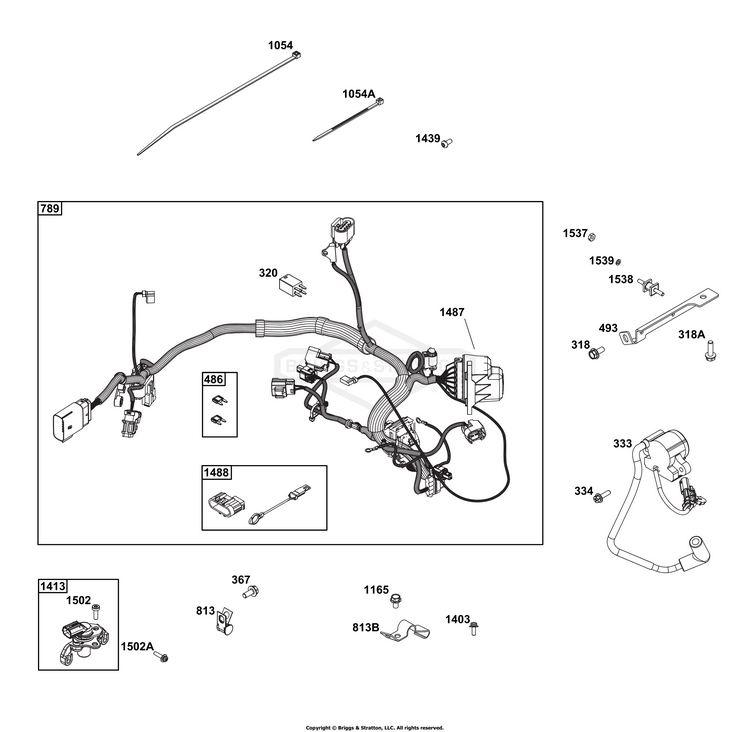

Controls Group

...
...
318
SCREW (Mounting Bracket) BS-807084
...
318A
SCREW (Mounting Bracket) BS-807435
...
320
RELAY(S) BS-593902
...
333
ARMATURE, Magneto Used Before Code Date 26041600 BS-84004206
...
333
ARMATURE, Magneto Used After Code Date 26041500 BS-84014297
...
334
SCREW (Magneto Armature) BS-841552
...
367
SCREW (Wire Clip) BS-807084
...
486
FUSE BS-593901
...
493
BRACKET, Mounting BS-84004219
...
789
HARNESS, Wiring BS-84004216
...
813
CLAMP, Tube BS-807116
...
813B
CLAMP BS-84004221
...
1054
TIE, Cable 11" Long BS-5021029SM
...
1054A
TIE, Cable BS-84004732
...
1165
SCREW (Clamp) BS-841233
...
1403
SCREW (Wire Assembly) BS-690677
...
1413
SENSOR, Speed BS-84006668
...
1439
SCREW (Thermistor Wire Assembly) BS-846459
...
1487
COVER, Fuse BS-847334
...
1488
COVER, Diagnostic BS-593899
...
1502
SCREW (Speed Sensor) BS-592577
...
1502A
SCREW (Speed Sensor) BS-846868
...
1537
NUT, Hex #8-32 (Fuse Cover) BS-703460
...
1538
STUD (Fuse Cover) BS-847332
...
1539
WASHER (Fuse Cover) BS-847333
