Briggs and Stratton 61G877-0017-J1

Model: 61G877-0017-J1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

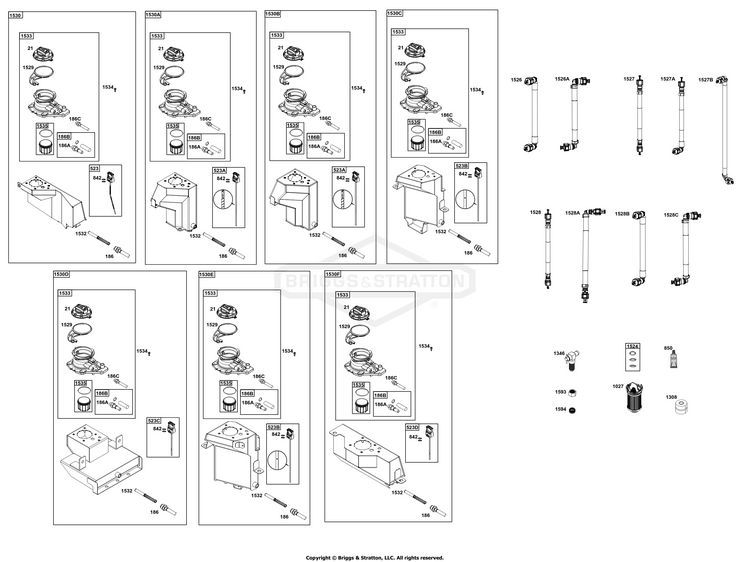

Oil Guard Group

...
...
21
CAP, Oil Fill BS-84008058
...
186
CONNECTOR, Hose (Supply) BS-84006592
...
186A
CONNECTOR, Hose (Scavenge) BS-847667
...
186B
CONNECTOR, Hose (Scavenge) BS-847344
...
186C
CONNECTOR, Hose (Vent) BS-847353
...
523
DIPSTICK BS-595602
...
523A
DIPSTICK (Long) BS-84013105
...
523B
DIPSTICK (Long) BS-84006989
...
523C
DIPSTICK (Short) BS-84006990
...
523D
DIPSTICK (Short) BS-84012890
...
842
SEAL, O-Ring (Dipstick Cap) BS-595935
...
850
SEALANT, Liquid BS-100106
...
1027
FILTER, Oil BS-84007094
...
1308
ISOLATOR BS-597784
...
1524
KIT, O-Ring BS-847342
...
1526
HOSE, Oil Supply (11.89 Inch) (302mm) BS-84006651
...
1526
HOSE, Oil Supply (19.45 Inch) (494mm) BS-84012889
...
1526A
HOSE, Oil Supply (13.31 Inch) (338mm) BS-84006649
...
1526A
HOSE, Oil Supply (15.04 Inch) (382mm) BS-84006648
...
1526A
HOSE, Oil Supply (19.02 Inch ) (483mm) BS-84006653
...
1527
HOSE, Oil Scavenge (32.28 Inch) (820mm) BS-84006660
...
1527A
HOSE, Oil Scavenge (21.42 Inch) (544mm) BS-84006661
...
1527A
HOSE, Oil Scavenge (25.31 Inch) (643mm) BS-84006597
...
1527A
HOSE, Oil Scavenge (33.98 Inch) (863mm) BS-84012888
...
1527B
HOSE, Oil Scavenge (19.65 Inch) (499mm) BS-84006658
...
1527B
HOSE, Oil Scavenge (21.61 Inch) (549mm) BS-84006659
...
1528
HOSE, Oil Vent (26.42 Inch) (671mm) BS-595942
...
1528
HOSE, Oil Vent (34.65 Inch) (880mm) BS-84012887
...
1528A
HOSE, Oil Vent (18.27 Inch) (464mm) BS-847351
...
1528A
HOSE, Oil Vent (35.51 Inch) (902mm) BS-595943
...
1528B
HOSE, Oil Vent (27.59 Inch) (700.8mm) BS-84006529
...
1528C
HOSE, Oil Vent (34.58 Inch) (878.4mm) BS-84007351
...
1529
TETHER BS-595932
...
1530
TANK/FILTER ASSY BS-84008060
...
1530A
TANK/FILTER ASSY BS-84008062
...
1530B
TANK, Oil (Small Mounting Bracket On Bottom Of Tank) BS-84006646
...
1530C
TANK, OIL BS-84013111
...
1530D
TANK, Oil BS-84006643
...
1530E
TANK, OIL BS-84013112
...
1530F
TANK, Oil BS-84012886
...
1532
SCREEN, Oil BS-847398
...
1533
HOUSING, Oil Filter BS-595986
...
1534
SCREW (Oil Filter Housing) BS-593637
...
1535
CUP, Oil Filter BS-84003825
