Briggs and Stratton 61G477-0106-J1

Model: 61G477-0106-J1

Back To Assemblies

Save Part Not Listed?
product name

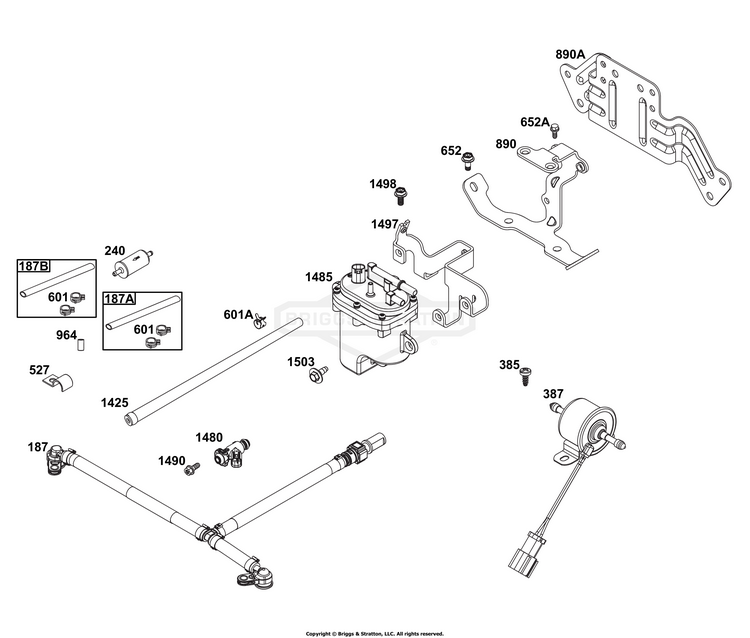

Fuel Supply Group

...
...
187
LINE, Fuel BS-846475
...
187A
LINE, Fuel BS-791745
...
187B
LINE, Fuel BS-791766
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-84006665
...
387
PUMP, Fuel BS-846470
...
527
CLAMP, Tube BS-690423
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Hose BS-846483
...
652
SCREW (Support Bracket) (M6x14mm) BS-807084
...
652A
SCREW (Support Bracket) BS-845964
...
890
BRACKET, Support BS-846506
...
890A
BRACKET, Support BS-846493
...
1425
HOSE, Purge Line BS-846514
...
1480
INJECTOR, Fuel BS-593852
...
1485
MODULE, Fuel BS-593890
...
1490
SCREW (Fuel Injector) (M6x14mm) BS-807084
...
1497
BRACKET, Fuel Module BS-846505
...
1498
SCREW (Fuel Module Bracket) (M6x14mm) BS-807084
...
1503
SCREW (Fuel Module) (1/4-20x.5) BS-594618
