Briggs and Stratton 61G277-0036-J1

Model: 61G277-0036-J1

Back To Assemblies

Save Part Not Listed?

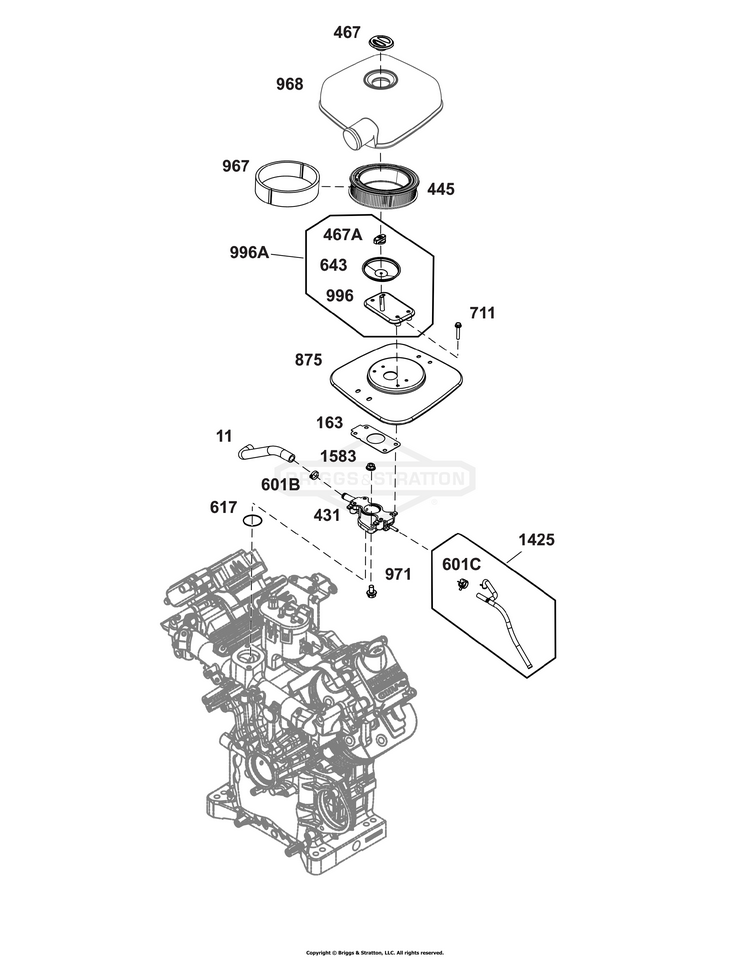

product name

Air Cleaner Group

...
...
11
TUBE, Breather BS-846502
...
163
GASKET, Air Cleaner BS-84006673
...
431
ELBOW, Intake BS-84006671
...
445
FILTER, A/C Cartridge BS-692519
...
467
KNOB, Air Cleaner Cover BS-846008
...
467A
KNOB, Air Cleaner Cover BS-846432
...
601B
CLAMP, Hose BS-844405
...
601C
CLAMP, Hose BS-846483
...
643
RETAINER, Air Cleaner BS-844932
...
711
SCREW (Carburetor Shield) BS-807385
...
875
BASE, Air Cleaner BS-84006672
...
967
FILTER, Pre Cleaner BS-692520
...
968
COVER, Air Cleaner BS-846323
...
971
SCREW (Air Cleaner Base To Carburetor/Throttle Body) BS-692062
...
996
SHIELD, Carburetor BS-846006
...
996A
SHIELD, Carburetor BS-846013
...
1425
TUBE, Vent BS-847085
...
1583
NUT (Intake Elbow) (After Date Code 21060100 Qty 2) BS-690939
...
1583
NUT (Intake Elbow) (Before Date Code 21060100 Qty 1) BS-690939
