Briggs and Stratton 61G277-0010-J1

Model: 61G277-0010-J1

Back To Assemblies

Save Part Not Listed?
product name

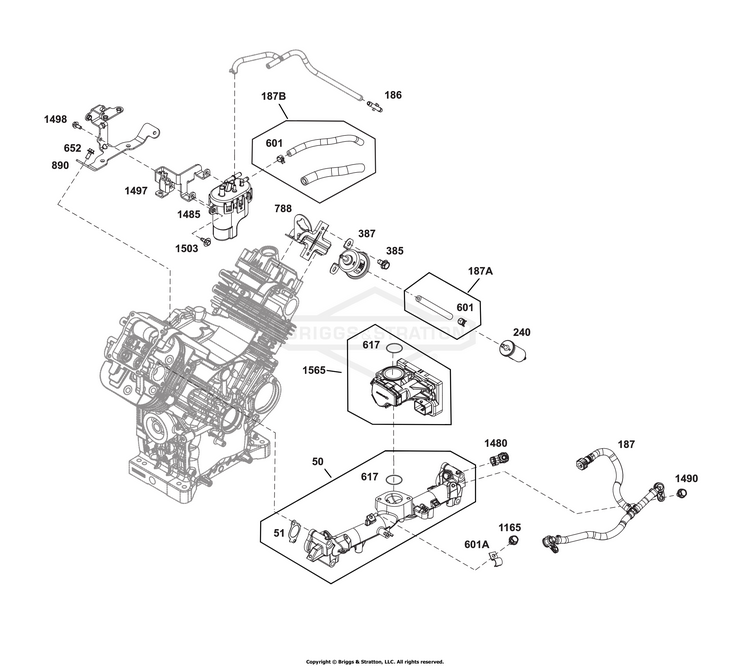

Throttle Body and Fuel Supply Group

...
...
186
CONNECTOR, Hose BS-845121
...
187
LINE, Fuel BS-846475
...
187A
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-846823
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-841233
...
387
PUMP, Fuel BS-846824
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Tube BS-690423
...
652
SCREW (Support Bracket) BS-807084
...
788
BRACKET, Fuel Pump BS-847087
...
890
BRACKET, Support BS-846506
...
1165
SCREW (Clamp) BS-843345
...
1480
INJECTOR, Fuel BS-593852
...
1485
MODULE, Fuel BS-593890
...
1490
SCREW (Fuel Injector) BS-807084
...
1497
BRACKET, Fuel Module BS-846505
...
1498
SCREW (Fuel Module Bracket) BS-807084
...
1503
SCREW (Fuel Module) BS-594618
...
1565
CONTROL, Electronic Throttle BS-84006022
