Briggs and Stratton 61E877-0010-J1

Model: 61E877-0010-J1

Back To Assemblies

Save Part Not Listed?
product name

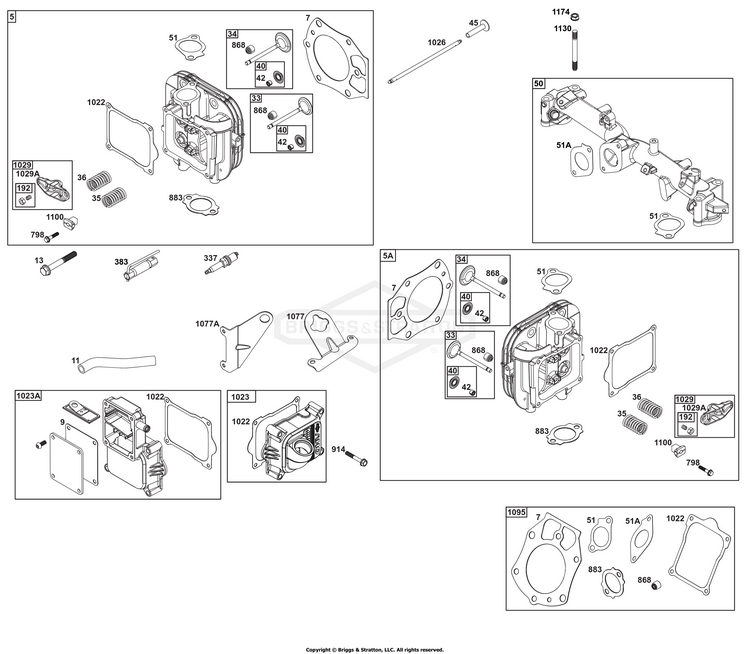

Cylinder Head Group

...
...
5
HEAD, Cylinder (Cylinder #1) BS-84010829
...
5A
HEAD, Cylinder (Cylinder #2) BS-84010830
...
7
GASKET, Cylinder Head BS-809730
...
9
REED, Breather BS-842544
...
11
TUBE, Breather BS-842541
...
13
SCREW (Cylinder Head) BS-809784
...
33
VALVE, Exhaust BS-843729
...
34
VALVE, Intake BS-846469
...
35
SPRING, Valve (Intake) BS-845589
...
36
SPRING, Valve (Exhaust) BS-845589
...
40
RETAINER, Valve BS-844788
...
42
KEEPER, Valve BS-807683
...
45
TAPPET, Valve BS-809785
...
50
MANIFOLD, Intake BS-846472
...
51
GASKET, Intake BS-847671
...
51A
GASKET, Intake BS-846473
...
192
ADJUSTER. Rocker Arm BS-690083
...
337
PLUG, Spark BS-792015
...
798
SCREW (Rocker Arm) BS-691492
...
383
WRENCH, Spark Plug BS-19576S
...
868
SEAL, Valve BS-691963
...
914
SCREW (Rocker Cover) BS-807357
...
1022
GASKET, Rocker Cover BS-809732
...
1023A
COVER, Rocker BS-842543
...
1023B
COVER, Rocker BS-847384
...
1026
ROD, Push BS-809783
...
1029
ARM, Rocker BS-690972
...
1029A
ARM, Rocker BS-84012342
...
1077
BRACKET, Lifting BS-809729
...
1077A
BRACKET, Lifting BS-847280
...
1095
GASKET SET, Valve (Service Kits can include parts not for this engine.) BS-846672
...
1100
PIVOT, Rocker Arm BS-791959
...
1130
STUD (Intake Manifold) BS-841590
...
1174
NUT (Intake Manifold) BS-842067
