Briggs and Stratton 61E877-0010-J1

Model: 61E877-0010-J1

Back To Assemblies

Save Part Not Listed?
product name

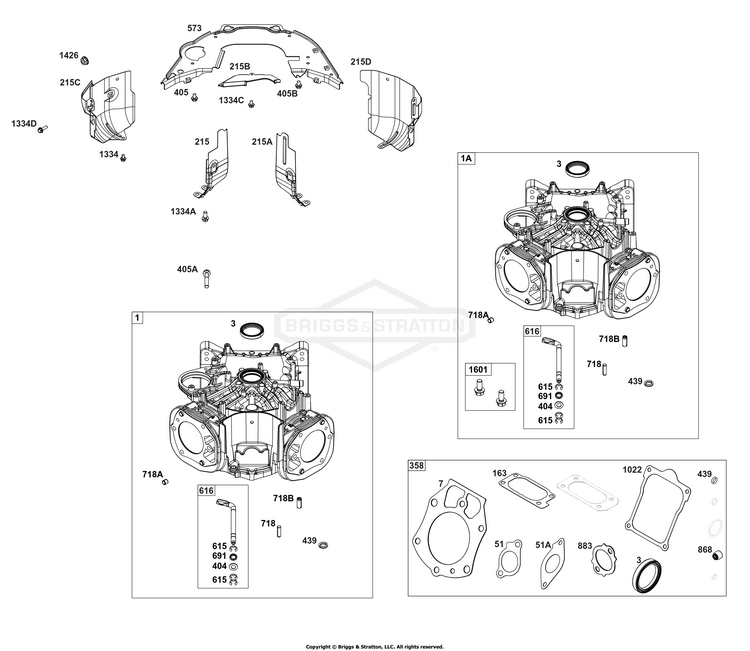

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-848372
...
1A
CYLINDER ASSEMBLY BS-84013603
...
3
SEAL, Oil (Magneto Side) BS-841596
...
215
GUIDE, Air BS-846455
...
215A
GUIDE, Air BS-846460
...
215B
GUIDE, Air BS-846458
...
215C
SHIELD, Cylinder BS-84013676
...
215D
SHIELD, Cylinder BS-84013677
...
358
GASKET SET, ENGINE (Service Kits can include parts not for this engine.) BS-84007012
...
358
GASKET SET, Engine (Service Kits can include parts not for this engine.) BS-84007012
...
404
WASHER (Governor Crank) BS-809436
...
405
SCREW (Back Plate) BS-841233
...
405A
SCREW BS-807362
...
405B
SCREW (Back Plate) BS-841735
...
439
O-RING, Oil Gallery BS-692154
...
573
PLATE, Back BS-846840
...
615
RETAINER, Governor Shaft BS-809533
...
616
CRANK, Governor BS-844180
...
691
SEAL, Governor Shaft BS-809287
...
718
PIN, Locating BS-690959
...
718A
PIN, Locating BS-809508
...
718B
PIN, Locating BS-845925
...
1334
SCREW (Air Guide) BS-841233
...
1334A
SCREW (Air Guide) BS-692062
...
1334C
SCREW (Air Guide) BS-690677
...
1334D
SCREW (Air Guide) BS-807435
...
1426
NUT (Air Guide) BS-690939
...
1601
KIT, Hardware "Only For Use<BR/> With Reference 1A" BS-84013604
