product name

Briggs and Stratton 61E877-0010-J1

Model: 61E877-0010-J1

Back To Assemblies

Save Part Not Listed?
product name

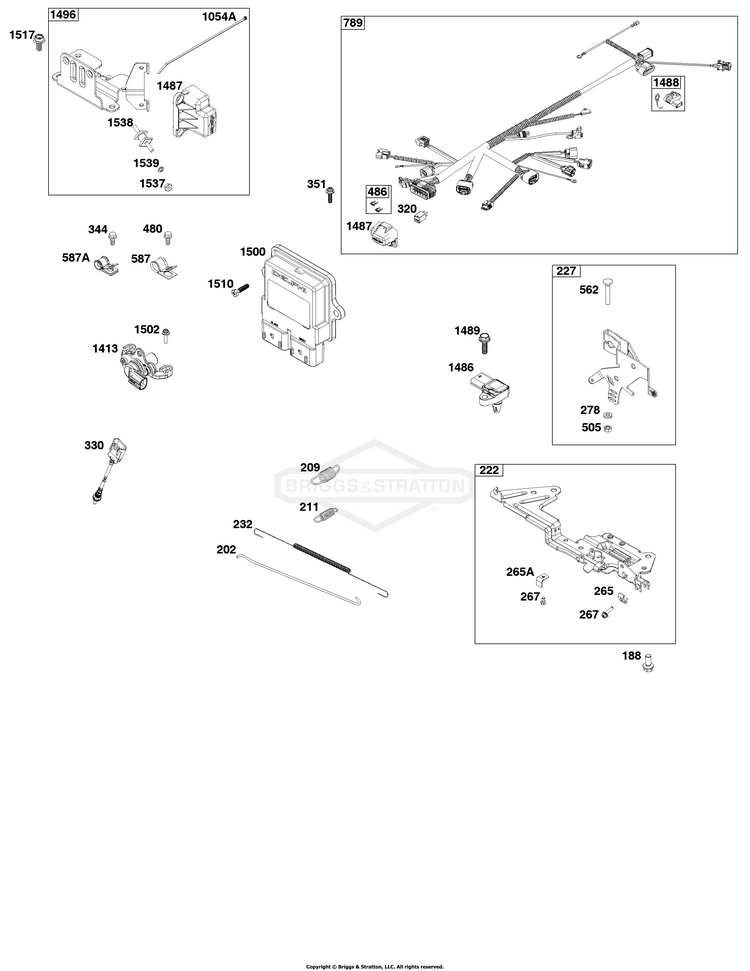

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
202
LINK, Mechanical Governor BS-846825
...
209
SPRING, Governor BS-841500
...
211
SPRING, Governed Idle BS-809875
...
222
BRACKET, Control BS-846818
...
227
LEVER, Governor Control BS-809984
...
232
SPRING/LINK, Governor BS-843248
...
265
CLAMP, Casing BS-691024
...
265A
CLAMP, Casing BS-841673
...
267
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
320
RELAY(S) BS-593902
...
330
SENSOR, Oxygen BS-593870
...
344
SCREW (Cable Clamp) BS-841233
...
351
SCREW (Ground Terminal) BS-690677
...
480
SCREW (Tube Clamp) BS-841233
...
486
FUSE BS-593901
...
505
NUT (Governor Control Lever) BS-844752
...
562
BOLT (Governor Control Lever) BS-843344
...
587
CLAMP, Tube BS-807116
...
587A
CLAMP, Cable BS-846866
...
789
HARNESS, WIRING BS-84004102
...
1054A
TIE, Cable BS-861206
...
1413
SENSOR, Speed BS-84006668
...
1486
SENSOR, TEMPERATURE/PRESSURE BS-84013424
...
1487
COVER, Fuse BS-847334
...
1488
COVER, Diagnostic BS-593899
...
1489
SCREW (Temperature/Manifold Air Pressure Sensor) BS-846459
...
1496
COVER, Fuse Kit BS-847337
...
1500
MODULE, Electronic Control (Not Programmed) BS-846484
...
1502
SCREW (Speed Sensor) BS-846868
...
1510
SCREW (Electronic Control Module) BS-841552
...
1517
SCREW (ECU Bracket) BS-807084
...
1537
NUT, Hex #8-32 (Fuse Cover) BS-703460
...
1538
STUD (Fuse Cover) BS-847332
...
1539
WASHER (Fuse Cover) BS-847333
