Briggs and Stratton 61A777-0103-J1

Model: 61A777-0103-J1

Back To Assemblies

Save Part Not Listed?
product name

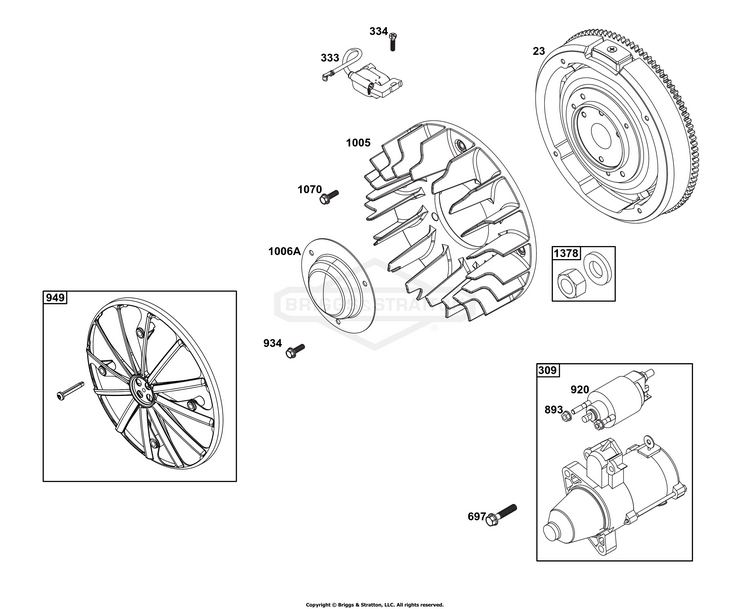

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-846836
...
309
MOTOR, Starter BS-84013103
...
333
ARMATURE, Magneto BS-84004206
...
334
SCREW (Magneto Armature) BS-841552
...
697
SCREW (Drive Cap) BS-690711
...
893
NUT (Starter Solenoid) BS-845758
...
920
SOLENOID, Starter Used Before Code Date 25022400 BS-84008635
...
920
SOLENOID, Starter Used After Code Date 25022300 BS-84013162
...
934
SCREW (Fan Retainer) BS-807421
...
949
GUARD, Debris Screen BS-84013101
...
1005
FAN, Flywheel BS-84011457
...
1006A
RETAINER, Fan BS-846495
...
1070
SCREW (Flywheel Fan) BS-807435
...
1378
SET, Washer/Nut BS-844795
