Briggs and Stratton 61A277-0101-J1

Model: 61A277-0101-J1

Back To Assemblies

Save Part Not Listed?
product name

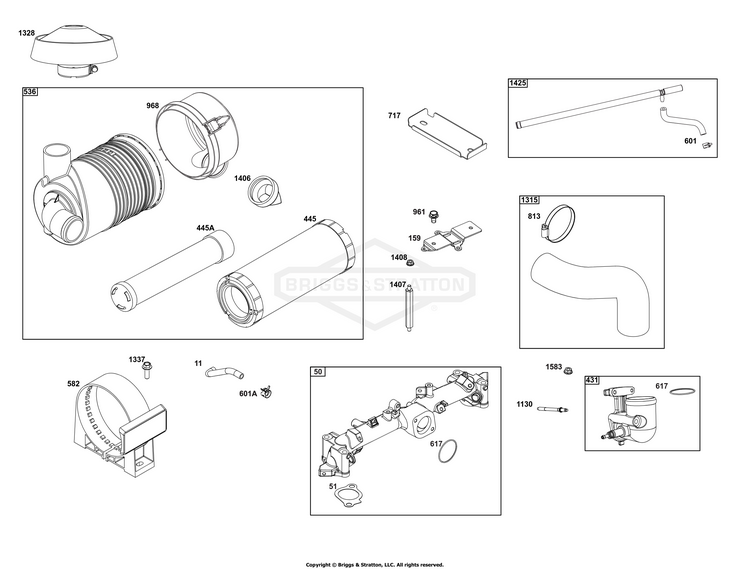

Air Cleaner Group

...
...
11
TUBE, Breather BS-847173
...
159
BRACKET, Air Cleaner BS-84006675
...
431
ELBOW, Intake BS-84006674
...
445
FILTER, A/C Cartridge BS-841497
...
445A
FILTER, A/C Cartridge BS-821136
...
536
CLEANER, Air BS-809670
...
582
CLAMP, Air Cleaner BS-809878
...
601
CLAMP, Hose BS-846483
...
601A
CLAMP, Hose BS-844405
...
717
BRACKET, Air Cleaner BS-841886
...
813
CLAMP BS-593625
...
961
SCREW (Air Cleaner Bracket) BS-841233
...
968
COVER, Air Cleaner BS-842621
...
1130
STUD (Intake Manifold) BS-84004225
...
1315
HOSE, Air Cleaner BS-84006676
...
1328
CAP, A/C Rain BS-809907
...
1337
SCREW (Air Cleaner Clamp) BS-807382
...
1406
VALVE, Debris BS-842623
...
1407
STUD (Air Cleaner Bracket) BS-846831
...
1408
NUT (Air Cleaner Bracket) BS-690939
...
1425
TUBE, Vent BS-847085
...
1583
NUT (Intake Elbow) BS-690939
