Briggs and Stratton 613477-4205-J1

Model: 613477-4205-J1

Back To Assemblies

Save Part Not Listed?
product name

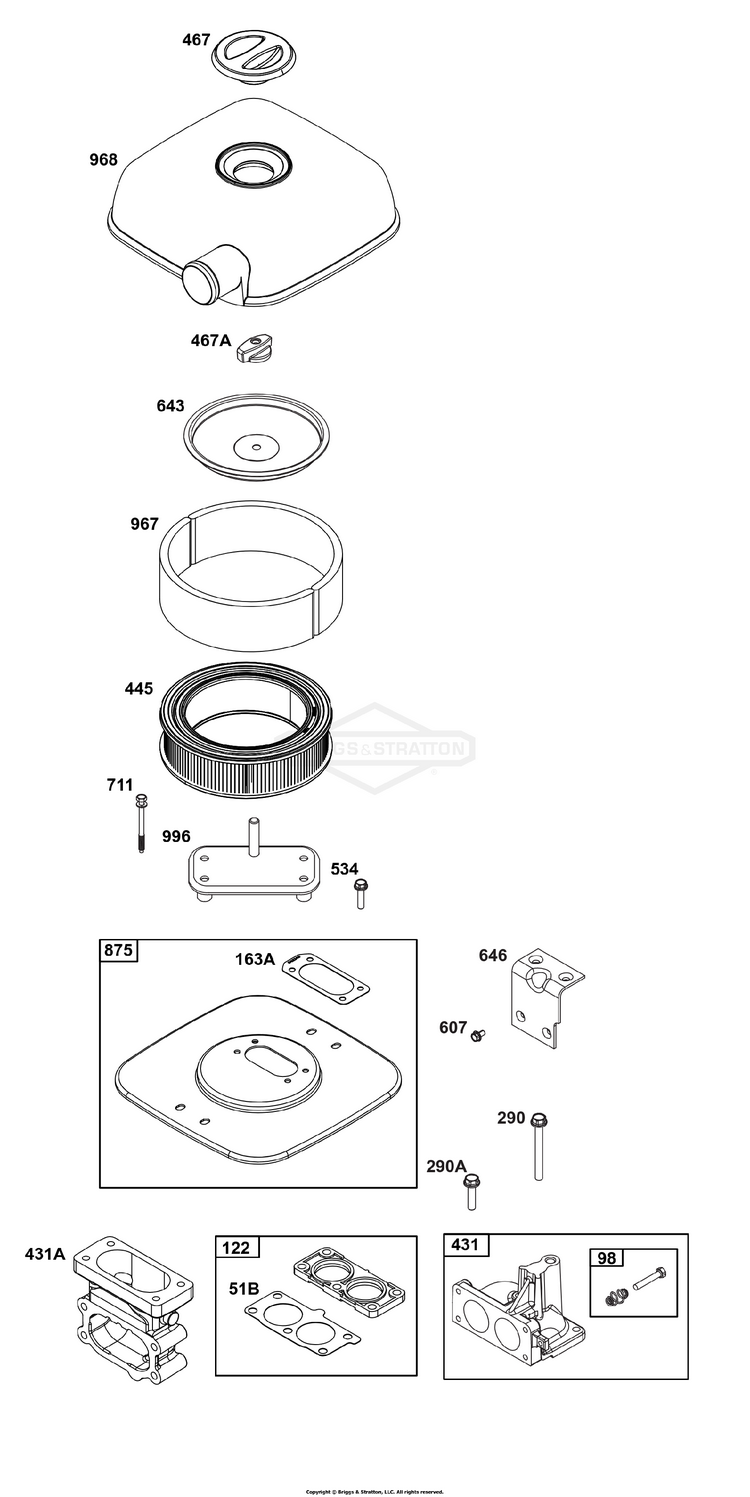

Air Cleaner Group

...
...
98
KIT, Idle Speed BS-841842
...
163A
GASKET, Air Cleaner BS-843117
...
290
SCREW (Intake Elbow) BS-809911
...
290A
SCREW (Intake Elbow) BS-807421
...
431
ELBOW, Intake BS-841539
...
431A
ELBOW, Intake BS-843116
...
445
FILTER, A/C Cartridge BS-692519
...
467
KNOB, Air Cleaner Cover BS-846008
...
467A
KNOB, Air Cleaner Cover BS-846432
...
534
SCREW (Air Cleaner) BS-692062
...
607
SCREW (Air Cleaner Brace) BS-841233
...
643
RETAINER, Air Cleaner BS-844932
...
646
BRACE, Air Cleaner BS-841849
...
711
SCREW (Carburetor Shield) BS-807385
...
875
BASE, Air Cleaner BS-843118
...
967
FILTER, Pre Cleaner BS-692520
...
968
COVER, Air Cleaner BS-841847
...
996
SHIELD, Carburetor BS-846006
