Briggs and Stratton 613477-0044-01

Model: 613477-0044-01

Back To Assemblies

Save Part Not Listed?
product name

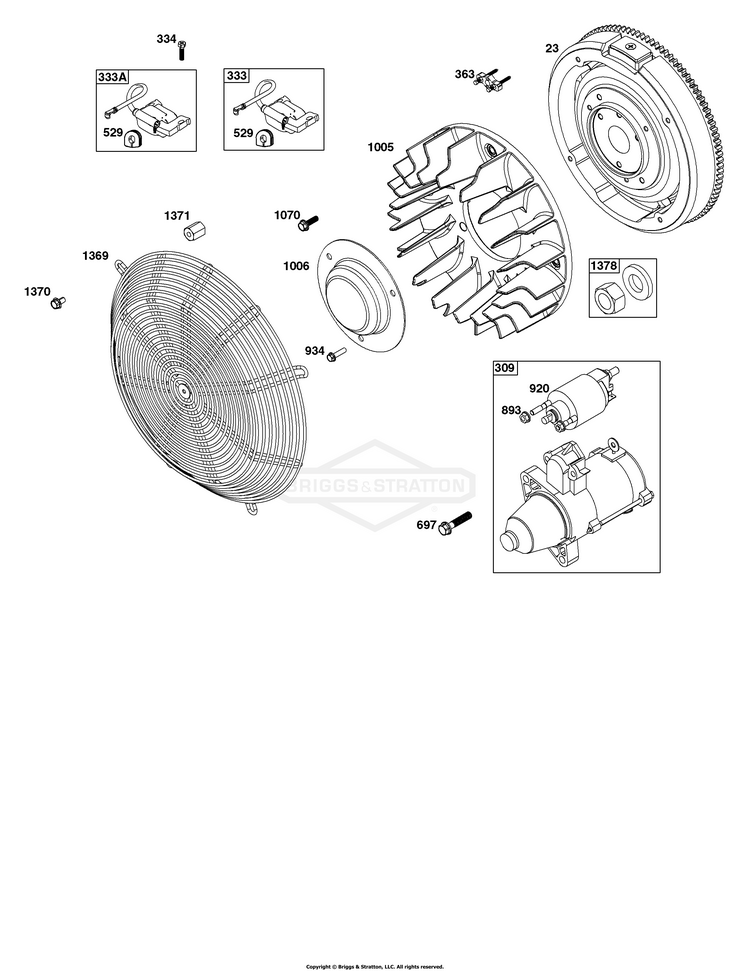

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-844653
...
309
MOTOR, Starter BS-84013103
...
333
ARMATURE, MAGNETO BS-84013938
...
333A
ARMATURE, Magneto BS-845602
...
334
SCREW (Magneto Armature) BS-692066
...
363
PULLER, Flywheel BS-19203
...
529
GROMMET BS-690744
...
697
SCREW (Drive Cap) BS-690711
...
893
NUT (Starter Solenoid) BS-845758
...
920
SOLENOID, Starter BS-84008635
...
934
SCREW BS-807421
...
1005
FAN, Flywheel BS-84006946
...
1006
RETAINER, Fan BS-846495
...
1070
SCREW (Flywheel Fan) BS-807435
...
1369
GUARD, Flywheel Fan BS-842858
...
1370
SCREW (Flywheel Fan Guard) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1378
SET, Washer/Nut BS-844795
