Briggs and Stratton 613477-0044-01

Model: 613477-0044-01

Back To Assemblies

Save Part Not Listed?
product name

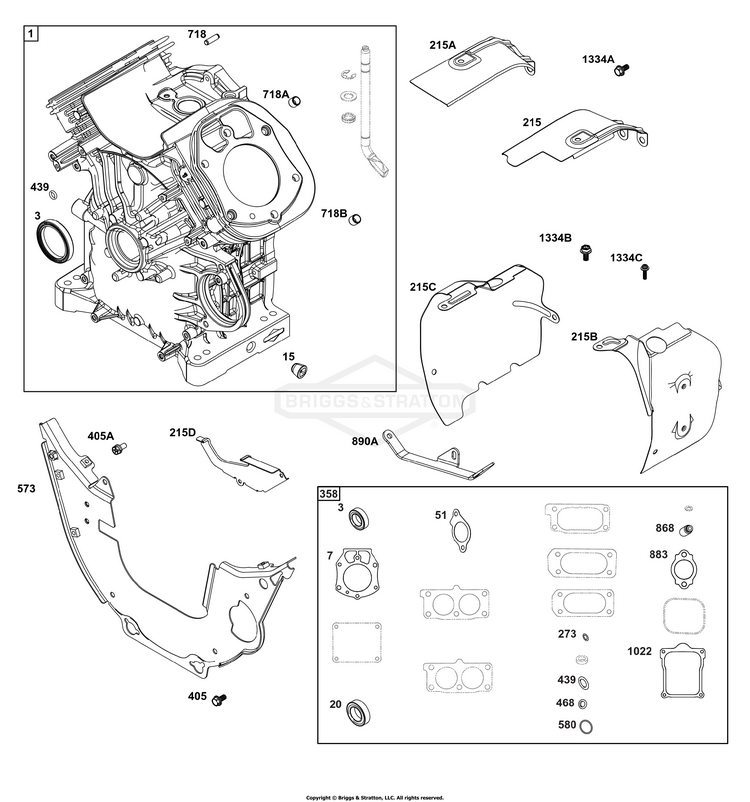

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84013611
...
3
SEAL, Oil (Magneto Side) BS-841596
...
15
PLUG, Oil Drain BS-691680
...
215
GUIDE, Air BS-809728
...
215A
GUIDE, Air BS-809737
...
215B
SHIELD, Cylinder BS-84013677
...
215C
SHIELD, Cylinder BS-84013676
...
215D
GUIDE, Air BS-809739
...
405
SCREW (Back Plate) BS-841233
...
405A
SCREW (Back Plate) BS-841735
...
573
PLATE, Back BS-846840
...
718
PIN, Locating BS-690959
...
718A
PIN, Locating BS-809508
...
718B
PIN, Locating BS-845925
...
890A
BRACKET, Support BS-841614
...
1334A
SCREW (Air Guide) BS-841233
...
1334B
SCREW (Air Guide) BS-807084
...
1334C
SCREW (Air Guide) BS-690677
