Briggs and Stratton 611477-1247-J1

Model: 611477-1247-J1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

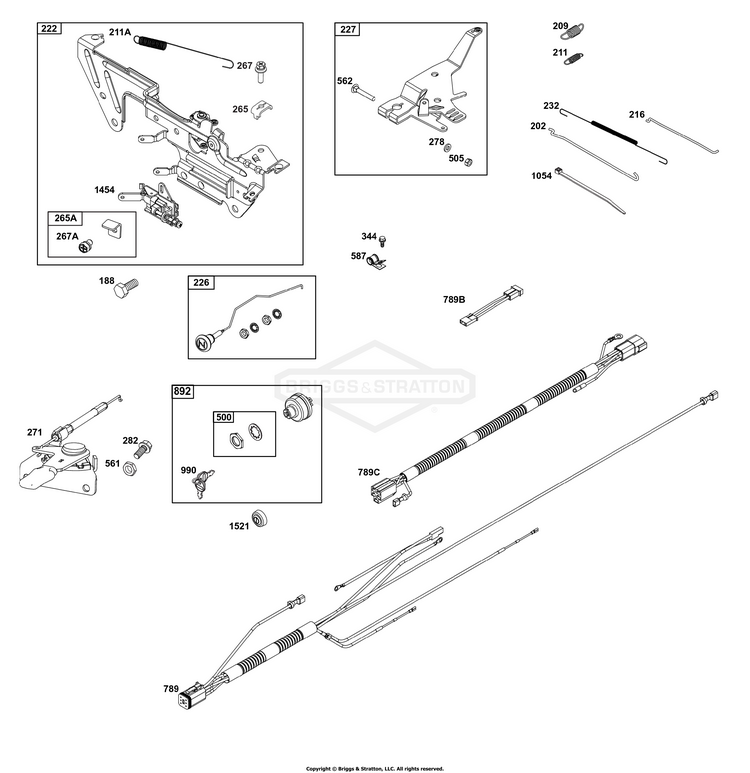

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
202
LINK, Mechanical Governor BS-841322
...
209
SPRING, Governor BS-841684
...
211
SPRING, Governed Idle BS-809875
...
211A
SPRING, Governed Idle BS-690707
...
216
LINK, Choke BS-845297
...
222
BRACKET, Control BS-841528
...
226
ROD, Choke BS-841613
...
227
LEVER, Governor Control BS-809984
...
232
SPRING/LINK, Governor BS-690545
...
265
CLAMP, Casing BS-691024
...
265A
CLAMP, Casing BS-841673
...
267
SCREW (Casing Clamp) BS-841552
...
267A
SCREW (Casing Clamp) BS-841552
...
271
LEVER, Control BS-692541
...
278
WASHER (Governor Control Lever) BS-842122
...
282
SCREW (Control Lever) BS-841552
...
344
SCREW (Cable Clamp) BS-841233
...
500
SET, Washer/Nut (Key Switch) BS-847144
...
505
NUT (Governor Control Lever) BS-844752
...
561
NUT (Control Lever) BS-806447
...
562
BOLT (Governor Control Lever) BS-843344
...
587
CLAMP, Cable BS-846866
...
789
HARNESS, Wiring BS-846951
...
789B
HARNESS, Wiring BS-843364
...
789C
HARNESS, Wiring BS-846776
...
892
SWITCH, Key BS-595428
...
990
SET, Key BS-847146
...
1054
TIE, Cable 11" Long BS-5021029SM
...
1454
SLIDER, Governor BS-845807
...
1521
CAP, Switch BS-847150
