Briggs and Stratton 543477-3322-H7

Model: 543477-3322-H7

Back To Assemblies

Save Part Not Listed?
product name

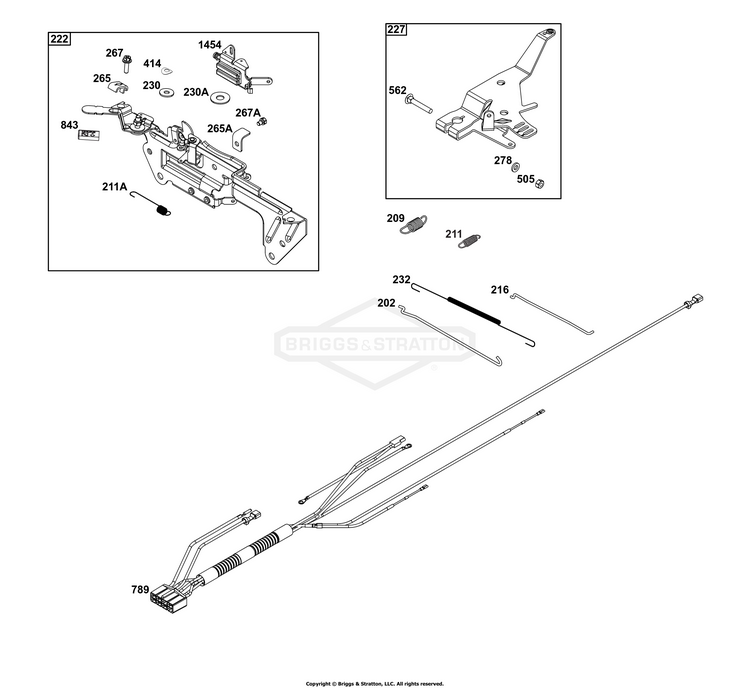

Controls Group

...
...
202
LINK, Mechanical Governor BS-841322
...
209
SPRING, Governor BS-842049
...
211
SPRING, Governed Idle BS-809875
...
211A
SPRING, Governed Idle BS-690707
...
222
BRACKET, Control BS-841492
...
227
LEVER, Governor Control BS-809984
...
230
WASHER (Control Bracket) BS-845498
...
230A
WASHER (Control Bracket) BS-690260
...
232
SPRING/LINK, Governor BS-690545
...
265
CLAMP, Casing BS-691024
...
265A
CLAMP, Casing BS-841673
...
267
SCREW (Casing Clamp) BS-841552
...
267A
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
414
WASHER (Bell Crank) BS-690344
...
505
NUT (Governor Control Lever) BS-844752
...
562
BOLT (Governor Control Lever) BS-843344
...
789
HARNESS, Wiring BS-847060
...
843
SLEEVE, Lever BS-809672
...
1454
SLIDER, Governor BS-845807
